BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.]

id041100801252

Caution
•  The clearance between the brake switch and the brake pedal is automatically adjusted to the correct amount when the brake switch is inserted into the installation hole on the brake pedal and rotated to fix in place. If the brake switch is not properly installed, the clearance may be incorrect, causing a brake light malfunction. Therefore, always verify that the brake pedal is properly installed and fully released before installing the brake switch to the pedal.
•  Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or the pedal, or performing any procedure that changes the pedal stroke.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the clutch pedal position switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

amxzzw00003671

1
Brake switch connector
2
Brake switch
(See Brake Switch Installation Note.)
3
Snap pin
(See Snap Pin Installation Note.)
4
Clevis pin
5
Nut
(See Nut and Bolt Installation Note.)
6
Bolt
(See Nut and Bolt Installation Note.)
7
Brake pedal
(See Brake Pedal Removal Note.)
8
Pedal pad


Brake Pedal Removal Note

1.  Move the power brake unit to the vehicle front where the power brake unit fork does not interfere with the brake pedal arm.

2.  Move the brake pedal in the direction of the arrow shown in the figure, and remove it while avoiding the hook.

amxzzw00003672


Nut and Bolt Installation Note

1.  Temporarily tighten the bolts.

amxzzw00003673

2.  Temporarily tighten the nuts.

3.  Tighten the nuts to the specified torque.

Tightening torque
19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}

4.  Tighten the bolts to the specified torque.

Tightening torque
19—25 N·m {2.0—2.5 kgf·m, 15—18 ft·lbf}


Snap Pin Installation Note

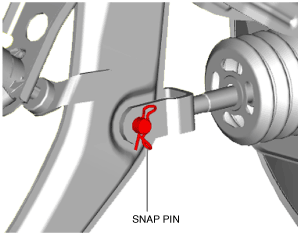

1.  Install the snap pin as shown in the figure.

amxzzw00003674


Brake Switch Installation Note

1.  Inspect the brake pedal. (See BRAKE PEDAL INSPECTION.)

2.  With the brake pedal fully released, insert a new brake switch into the installation hole on the brake pedal.

3.  Secure the brake switch by turning it counterclockwise 45°.

amxzzw00003675
