FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041500800300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front mudguard No.1 and front deflector as a single unit. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

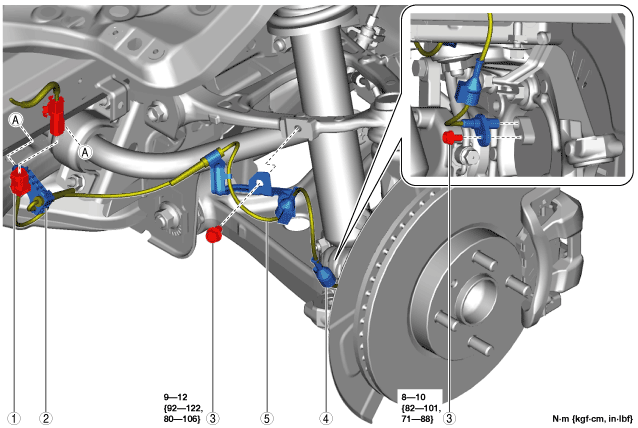

amxuuw00005119

1	Connector
2	Harness clip
3	Bolt
4	Grommet
5	Front ABS wheel-speed sensor
