DSC HU/CM INSPECTION

id041500801100

1. Disconnect the DSC HU/CM connector. (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].)

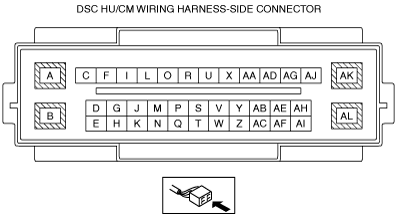

2. Measure the voltage or continuity of the DSC HU/CM wiring harness-side connector using a tester.

ac5wzw00000003

Terminal Voltage Table (Reference)

Terminal

Connected to

Measured item

Test condition or measured terminal

Specification (Reference)

Inspection item

A

Battery (without i-ELOOP)

Voltage

Under any condition

B+

•  Inspect the battery.
(See BATTERY INSPECTION.)

•  Inspect related wiring harness.

DC-DC converter (with i-ELOOP)

Voltage

Under any condition

B+

•  Inspect the DC-DC converter.
(See DC-DC CONVERTER (i-ELOOP) INSPECTION [i-ELOOP].)

•  Inspect related wiring harness.

B

Battery (without i-ELOOP)

Voltage

Under any condition

B+

•  Inspect the battery.
(See BATTERY INSPECTION.)

•  Inspect related wiring harness.

DC-DC converter (with i-ELOOP)

Voltage

Under any condition

B+

•  Inspect the DC-DC converter.
(See DC-DC CONVERTER (i-ELOOP) INSPECTION [i-ELOOP].)

•  Inspect related wiring harness.

C

CAN related module

Because this terminal is for communication, determination using terminal voltage inspection is not possible. Perform the inspection using the DTC inspection.

D

CAN related module

Because this terminal is for communication, determination using terminal voltage inspection is not possible. Perform the inspection using the DTC inspection.

E

—

—

—

—

—

F

—

—

—

—

—

G

—

—

—

—

—

H

—

—

—

—

—

I

IG1 relay

Voltage

Ignition off

1.0 V or less

•  Inspect the IG1 relay.
(See RELAY INSPECTION.)

•  Inspect related wiring harness.

Ignition ON (engine off)

B+

J

RF ABS wheel-speed sensor

Continuity

DSC HU/CM terminal J—RF ABS wheel-speed sensor terminal B

Continuity detected

•  Inspect the RF ABS wheel-speed sensor.
(See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

K

RF ABS wheel-speed sensor

Continuity

DSC HU/CM terminal K—RF ABS wheel-speed sensor terminal A

Continuity detected

•  Inspect the RF ABS wheel-speed sensor.
(See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

L

RR ABS wheel-speed sensor

Continuity

DSC HU/CM terminal L—RR ABS wheel-speed sensor terminal B

Continuity detected

•  Inspect the RR ABS wheel-speed sensor.
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

M

RR ABS wheel-speed sensor

Continuity

DSC HU/CM terminal M—RR ABS wheel-speed sensor terminal A

Continuity detected

•  Inspect the RR ABS wheel-speed sensor.
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

N

—

—

—

—

—

O^*1

Brake light relay

Voltage

Brake pedal depressed

B+

•  Inspect the brake light relay.
(See RELAY INSPECTION.)

•  Inspect related wiring harness.

Brake pedal released

1.0 V or less

P

LR ABS wheel-speed sensor

Continuity

DSC HU/CM terminal P—LR ABS wheel-speed sensor terminal B

Continuity detected

•  Inspect the LR ABS wheel-speed sensor.
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

Q

—

—

—

—

—

R

LR ABS wheel-speed sensor

Continuity

DSC HU/CM terminal R—LR ABS wheel-speed sensor terminal A

Continuity detected

•  Inspect the LR ABS wheel-speed sensor.
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

S

LF ABS wheel-speed sensor

Continuity

DSC HU/CM terminal S—LF ABS wheel-speed sensor terminal B

Continuity detected

•  Inspect the LF ABS wheel-speed sensor.
(See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

T

—

—

—

—

—

U

—

—

—

—

—

V

—

—

—

—

—

W

LF ABS wheel-speed sensor

Continuity

DSC HU/CM terminal W—LF ABS wheel-speed sensor terminal A

Continuity detected

•  Inspect the LF ABS wheel-speed sensor.
(See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

•  Inspect related wiring harness.

X

—

—

—

—

—

Y

—

—

—

—

—

Z

—

—

—

—

—

AA

—

—

—

—

—

AB

—

—

—

—

—

AC

—

—

—

—

—

AD

—

—

—

—

—

AE

—

—

—

—

—

AF

—

—

—

—

—

AG

—

—

—

—

—

AH

—

—

—

—

—

AI

—

—

—

—

—

AJ

—

—

—

—

—

AK

Ground point

Continuity

DSC HU/CM terminal AK—ground point

Continuity detected

•  Inspect related wiring harness.

AL

Ground point

Continuity

DSC HU/CM terminal AL—ground point

Continuity detected

•  Inspect related wiring harness.

Terminal	Connected to	Measured item	Test condition or measured terminal	Specification (Reference)	Inspection item
A	Battery (without i-ELOOP)	Voltage	Under any condition	B+	• Inspect the battery. (See BATTERY INSPECTION.) • Inspect related wiring harness.
DC-DC converter (with i-ELOOP)	Voltage	Under any condition	B+	• Inspect the DC-DC converter. (See DC-DC CONVERTER (i-ELOOP) INSPECTION [i-ELOOP].) • Inspect related wiring harness.
B	Battery (without i-ELOOP)	Voltage	Under any condition	B+	• Inspect the battery. (See BATTERY INSPECTION.) • Inspect related wiring harness.
DC-DC converter (with i-ELOOP)	Voltage	Under any condition	B+	• Inspect the DC-DC converter. (See DC-DC CONVERTER (i-ELOOP) INSPECTION [i-ELOOP].) • Inspect related wiring harness.
C	CAN related module	Because this terminal is for communication, determination using terminal voltage inspection is not possible. Perform the inspection using the DTC inspection.
D	CAN related module	Because this terminal is for communication, determination using terminal voltage inspection is not possible. Perform the inspection using the DTC inspection.
E	—	—	—	—	—
F	—	—	—	—	—
G	—	—	—	—	—
H	—	—	—	—	—
I	IG1 relay	Voltage	Ignition off	1.0 V or less	• Inspect the IG1 relay. (See RELAY INSPECTION.) • Inspect related wiring harness.
Ignition ON (engine off)	B+
J	RF ABS wheel-speed sensor	Continuity	DSC HU/CM terminal J—RF ABS wheel-speed sensor terminal B	Continuity detected	• Inspect the RF ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
K	RF ABS wheel-speed sensor	Continuity	DSC HU/CM terminal K—RF ABS wheel-speed sensor terminal A	Continuity detected	• Inspect the RF ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
L	RR ABS wheel-speed sensor	Continuity	DSC HU/CM terminal L—RR ABS wheel-speed sensor terminal B	Continuity detected	• Inspect the RR ABS wheel-speed sensor. (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
M	RR ABS wheel-speed sensor	Continuity	DSC HU/CM terminal M—RR ABS wheel-speed sensor terminal A	Continuity detected	• Inspect the RR ABS wheel-speed sensor. (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
N	—	—	—	—	—
O^*1	Brake light relay	Voltage	Brake pedal depressed	B+	• Inspect the brake light relay. (See RELAY INSPECTION.) • Inspect related wiring harness.
Brake pedal released	1.0 V or less
P	LR ABS wheel-speed sensor	Continuity	DSC HU/CM terminal P—LR ABS wheel-speed sensor terminal B	Continuity detected	• Inspect the LR ABS wheel-speed sensor. (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
Q	—	—	—	—	—
R	LR ABS wheel-speed sensor	Continuity	DSC HU/CM terminal R—LR ABS wheel-speed sensor terminal A	Continuity detected	• Inspect the LR ABS wheel-speed sensor. (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
S	LF ABS wheel-speed sensor	Continuity	DSC HU/CM terminal S—LF ABS wheel-speed sensor terminal B	Continuity detected	• Inspect the LF ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
T	—	—	—	—	—
U	—	—	—	—	—
V	—	—	—	—	—
W	LF ABS wheel-speed sensor	Continuity	DSC HU/CM terminal W—LF ABS wheel-speed sensor terminal A	Continuity detected	• Inspect the LF ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.) • Inspect related wiring harness.
X	—	—	—	—	—
Y	—	—	—	—	—
Z	—	—	—	—	—
AA	—	—	—	—	—
AB	—	—	—	—	—
AC	—	—	—	—	—
AD	—	—	—	—	—
AE	—	—	—	—	—
AF	—	—	—	—	—
AG	—	—	—	—	—
AH	—	—	—	—	—
AI	—	—	—	—	—
AJ	—	—	—	—	—
AK	Ground point	Continuity	DSC HU/CM terminal AK—ground point	Continuity detected	• Inspect related wiring harness.
AL	Ground point	Continuity	DSC HU/CM terminal AL—ground point	Continuity detected	• Inspect related wiring harness.

*1 :Vehicles with Smart City Brake Support (SCBS)
