TRANSMISSION OIL REPLACEMENT [M66M-D]

id0511p3247900

1.  Park the vehicle on level ground.

2.  Remove the center under cover. (With center under cover) (See CENTER UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the plate. (With plate) (See PLATE REMOVAL/INSTALLATION.)

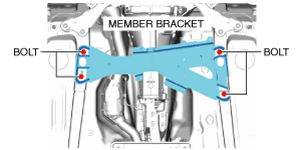

4.  Remove the member bracket. (With member bracket)

amxuuw00004805

5.  Remove the drain plug and gasket, and drain the manual transmission oil.

amxzzw00005081

6.  Install a new gasket and the drain plug.

Tightening torque
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

7.  Remove the oil level plug and gasket.

amxzzw00005082

8.  Add the specified amount of manual transmission oil through the oil level plug hole.

Specified transmission oil

Transmission oil amount (reference)
Mazda Original Long Life Gear Oil IS*1
2.0 L {2.1 US qt, 1.8 Imp qt}

*1  :Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life Gear Oil IS is recommended. If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-90)). However, shifting in very low temperatures may become difficult.

9.  Install a new gasket and the oil level plug.

Tightening torque
40—59 N·m {4.1—6.0 kgf·m, 30—43 ft·lbf}

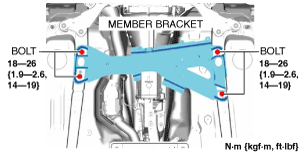

10.  Install the member bracket. (With member bracket)

amxzzw00004008

11.  Install the plate. (With plate) (See PLATE REMOVAL/INSTALLATION.)

12.  Install the center under cover. (With center under cover) (See CENTER UNDER COVER REMOVAL/INSTALLATION.)
