ELECTRIC AT OIL PUMP DRIVER CONTROL UNIT REMOVAL/INSTALLATION [SJ6A-EL]

id051311501200

Caution

•  Do not drop or apply a shock to the electric AT oil pump driver control unit. Replace the electric AT oil pump driver control unit if it has been dropped or received an impact.

•  Make sure that your hand does not touch the terminal as the connector terminal could be damaged.

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

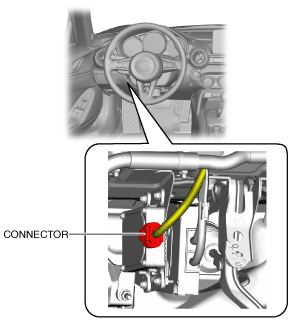

2.  Disconnect the connector.

amxzzw00003355

3.  Remove in the order indicated in the table.

amxzzw00004470

1	Electric AT oil pump driver control unit installation bolt
2	Electric AT oil pump driver control unit

4.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

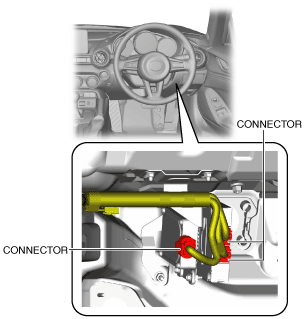

2.  Disconnect the connectors.

amxzzw00003357

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

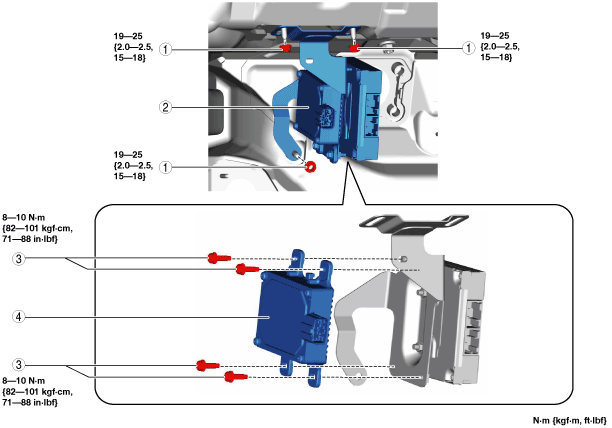

amxzzw00003358

1	TCM component installation nuts (See TCM component installation nuts installation note.)
2	TCM component
3	Electric AT oil pump driver control unit installation bolt
4	Electric AT oil pump driver control unit

TCM component installation nuts installation note

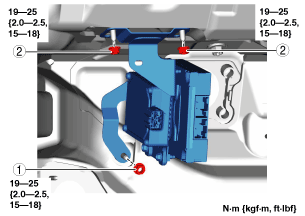

1.  Tighten the TCM component installation nuts in the order shown in the figure.

amxzzw00003359
