STEERING GEAR AND LINKAGE DISASSEMBLY
id061300801800
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the front under cover. (See FRONT UNDER COVER REMOVAL/INSTALLATION.)
3. Disconnect the intermediate shaft from the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION.)
4. Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

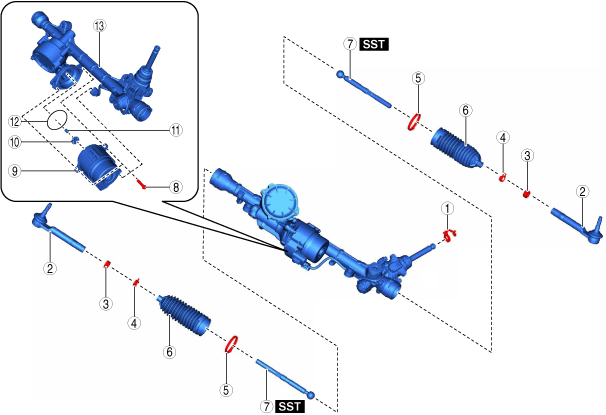

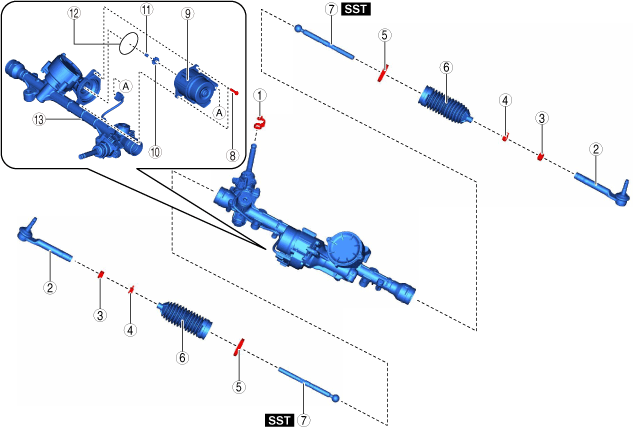

5. Disassemble in the order indicated in the figure.
L.H.D.
amxzzw00003978
|
R.H.D.
amxzzw00003964
|
|
1
|
Clip
|
|
2
|
Tie-rod end
(See Tie-rod End Disassembly Note.)
|
|
3
|
Locknut
|
|
4
|
Boot clamp
|
|
5
|
Boot band
(See Boot Band Disassembly Note .)
|
|
6
|
Boot
|
|
7
|
Tie rod
(See Tie Rod Disassembly Note.)
|
|
8
|
Bolt
|
|
9
|
EPS CM
|
|
10
|
Rubber
|
|
11
|
Spacer
|
|
12
|
O-ring
|
|
13
|
Steering gear
|
Tie-rod End Disassembly Note
1. Place alignment marks as shown in the figure for proper installation.
amxuuw00002980
|
2. Remove the tie-rod end.
amxuuw00002981
|
Boot Band Disassembly Note
1. Insert a flathead screwdriver into the crimped part of the boot band, expand the crimped part and remove the boot band.
am2zzw00008163
|
Tie Rod Disassembly Note
1. Move the stopper at the steering rack end in the direction of the arrow so that a wrench can be hooked to the steering rack end.
amxuuw00005368
|

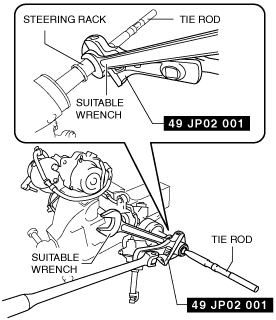

2. Lock the steering rack end (pinion gear side) against rotation using a wrench and remove the tie rod using the SST.
amxuuw00005787
|
