REFRIGERANT LINE

id071100002400

Purpose

Construction

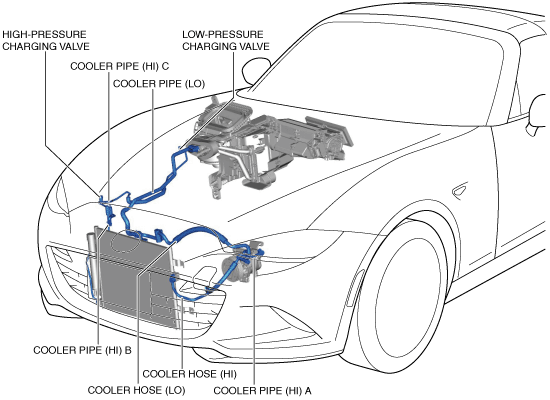

L.H.D.

•  Block-type piping has been adopted to the pipe connection, improving the efficiency of removal/installation related servicing.

•  The pipes in the piping system consist of the following parts.

―  Cooler hose (HI)

―  Cooler hose (LO)

―  Cooler pipe (HI) A

―  Cooler pipe (HI) B

―  Cooler pipe (HI) C

―  Cooler pipe (LO)

•  The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).

•  A high-pressure charging valve is located on cooler pipe (HI) C and a low-pressure charging valve is located on the cooler pipe (LO).

amxuun00000769

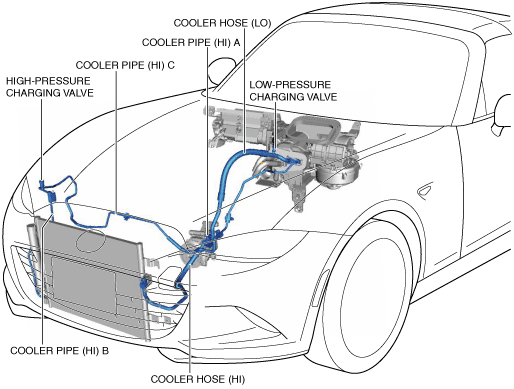

R.H.D.

•  Block-type piping has been adopted to the pipe connection, improving the efficiency of removal/installation related servicing.

•  The pipes in the piping system consist of the following parts.

―  Cooler hose (HI)

―  Cooler hose (LO)

―  Cooler pipe (HI) A

―  Cooler pipe (HI) B

―  Cooler pipe (HI) C

•  The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).

•  A high-pressure charging valve is located on cooler pipe (HI) C and a low-pressure charging valve is located on the cooler hose (LO).

amxzzn00001000
