CABIN TEMPERATURE SENSOR [FULL-AUTO AIR CONDITIONER]
id0740a1005800
Purpose, Function
• The cabin temperature sensor converts the detected cabin temperature to an electric signal.
Construction

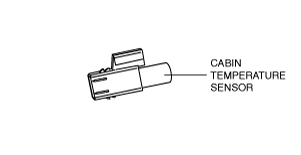

• A thermistor type cabin temperature sensor has been adopted.
• The cabin temperature sensor is located on the lower panel (driver-side).
Operation
• The thermistor changes the resistance according to the surrounding temperature.
• The resistance decreases if the temperature increases, and increases if the temperature decreases.
Fail-safe
• Not applicable
