FOREWORD [SAS CONTROL MODULE (ACTIVE BONNET)]

id0802h4080300

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

• When reconnecting all the disconnected connectors, always connect the SAS connectors last.

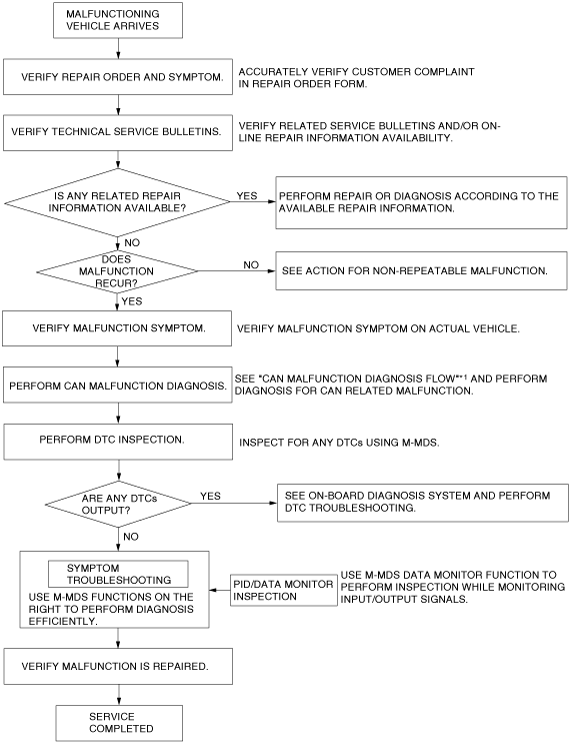

Troubleshooting Procedure

am3uuw00007779

*1 :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D.].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

Action for non-repeatable malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

1. Using the M-MDS, verify that no DTCs are stored. (See DTC INSPECTION [SAS CONTROL MODULE (ACTIVE BONNET)].)

2. Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

3. Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.

am3uuw00008128

4. Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

• Tool used (Reference): PROBE KIT (49US- 15-1A0)

amxzzw00004444

Outline

• The OBD (on-board diagnostic) system has the following functions:

― Malfunction detection function: Detects malfunctions in the air bag system and outputs DTCs (Diagnostic Trouble Codes).

― PID/data monitor function: Reads out specific input/output signals and the system status.

• DTCs can be read/cleared using the M-MDS.

Note

• Use the M-MDS to verify DTCs because the DTCs displayed by the air bag system warning light are reference information only.
