BUCKLE REMOVAL/INSTALLATION

id081100202418

Warning

•  Handling the seat (with side air bag module) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the air bag system service warnings and cautions before handling the seat (with side air bag module). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

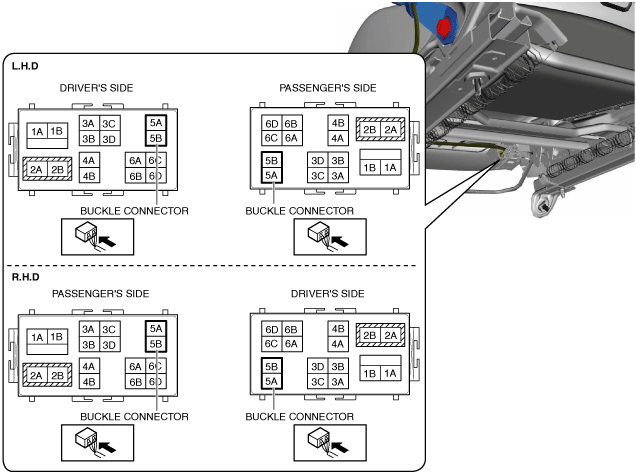

4.  Disconnect the connector as shown in the figure.

amxzzw00003053

5.  Remove the clip.

amxuuw00004118

6.  Remove the bolt.

7.  Remove the buckle.

8.  Install in the reverse order of removal.

9.  Switch the ignition ON (engine off or on).

10.  Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

•  If the air bag/seat belt pre-tensioner system warning light does not operate, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (AIR BAG SYSTEM)].)
