ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ELECTRICAL SUPPLY UNIT (ESU)]

id0902ff060200

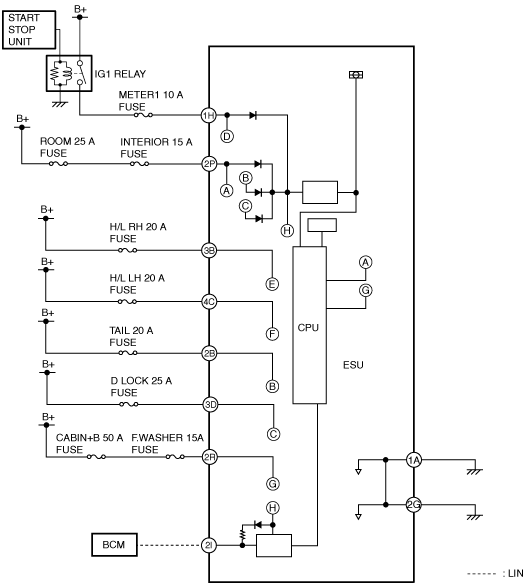

Power supply, ground earth, LIN communication

amxuun00001269

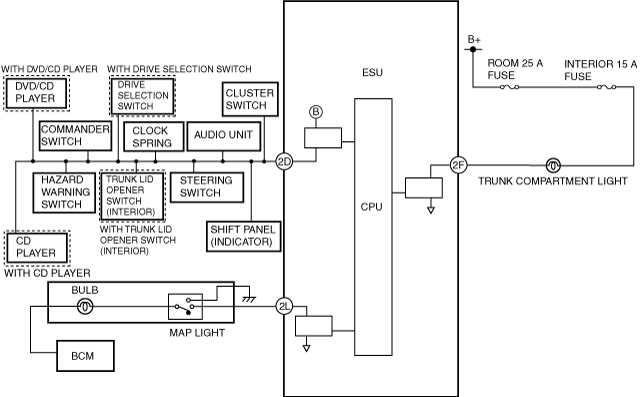

Map light, trunk compartment light

amxzzn00001934

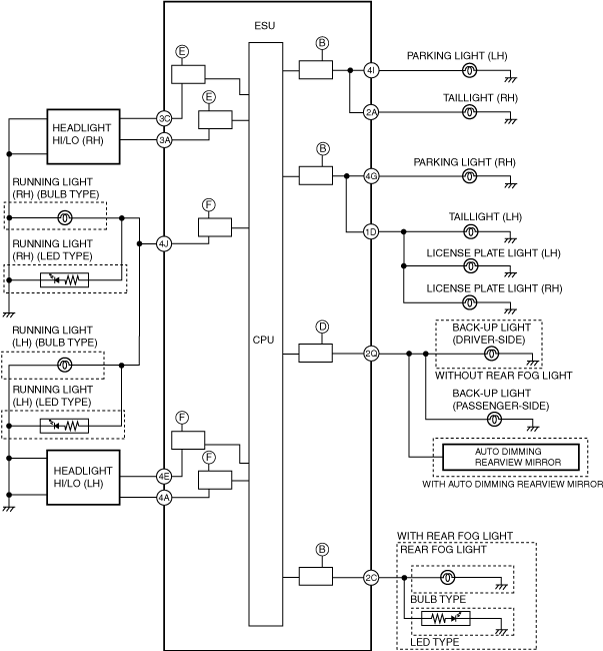

Exterior lighting

amxzzn00001935

Door lock, washer

amxzzn00001936
