DTC B1313:12 [ELECTRICAL SUPPLY UNIT (ESU)]


id0902ff061600

Description

Map light circuit malfunction

Detection condition
•  Electrical supply unit (ESU) detects a short to power supply in the map light circuit.
Fail-safe
Not applicable
Possible cause
•  Map light malfunction
―  Map light bulb malfunction
―  Map light malfunction
•  Map light connector or terminal malfunction
•  Electrical supply unit (ESU) connector or terminal malfunction
•  Short to power supply in wiring harness between map light terminal B and electrical supply unit (ESU) terminal 2L
•  Electrical supply unit (ESU) malfunction

Diagnostic Procedure

Step

Inspection

Action

1
INSPECT MAP LIGHT
•  Inspect the map light.
•  Is the map light normal?
Yes
Go to the next step.
No
Replace the map light bulb or map light, then go to Step 5.
2
INSPECT MAP LIGHT CONNECTOR CONDITION
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Disconnect the map light connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
3
INSPECT ELECTRICAL SUPPLY UNIT (ESU) CONNECTOR CONDITION
•  Disconnect the electrical supply unit (ESU) connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
4
INSPECT MAP LIGHT CIRCUIT FOR SHORT TO POWER SUPPLY
•  Verify that the map light and electrical supply unit (ESU) connectors are disconnected.
•  Connect the negative battery terminal.
•  Switch the ignition ON (engine off or on).
•  Measure the voltage at map light terminal B (wiring harness-side).
•  Is the voltage 0 V?
Yes
Go to the next step.
No

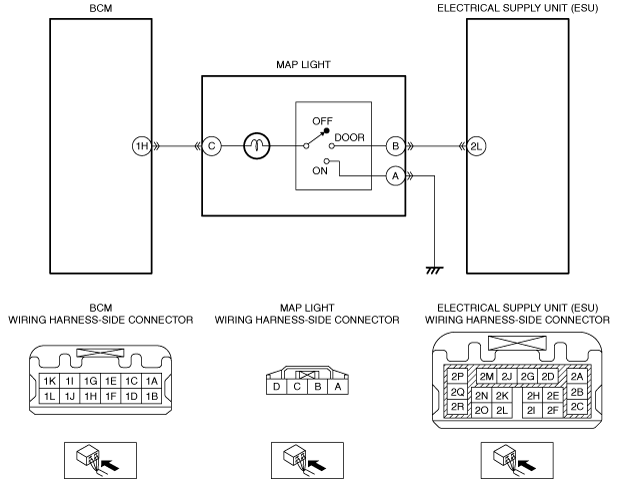

Refer to the wiring diagram and verify whether or not there is a common connector between map light terminal B and electrical supply unit (ESU) terminal 2L.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to power supply.
Go to the next step.
5
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Always reconnect all disconnected connectors.
•  Connect the negative battery terminal.
•  Clear the DTC for the electrical supply unit (ESU) using the M-MDS.
•  Operate the room light switch to DOOR position.
•  Retrieve the electrical supply unit (ESU) DTCs using the M-MDS.
•  Is the same Pending DTC present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the electrical supply unit (ESU).
Go to the next step.
No
Go to the next step.
6
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
