FOREWORD [ENTERTAINMENT SYSTEM [WITHOUT CENTER DISPLAY]]

id0903l9059700

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

Troubleshooting Procedure

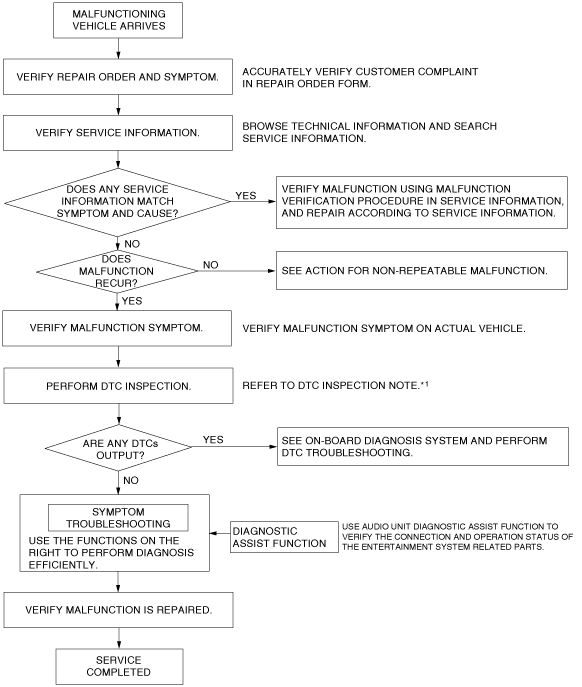

am2zzw00011374

*1 :(See DTC Inspection Note.)

Action for non-repeatable malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Verify that a DTC has been recorded in the memory. (See DTC INSPECTION [AUDIO UNIT].)

― Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.

aaxjjw00012432

― Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

• SST (Reference): PROBE KIT (49US 15 1A0)

am6zzw00016940

DTC Inspection Note

• The entertainment system [without center display] DTCs can be verified using the on-board diagnostic test mode to activate the on-board diagnostic function by operating the audio unit. (See DIAGNOSTIC ASSIST FUNCTION [AUDIO UNIT].)
