REAR BUMPER STAY REMOVAL/INSTALLATION

id091000030000

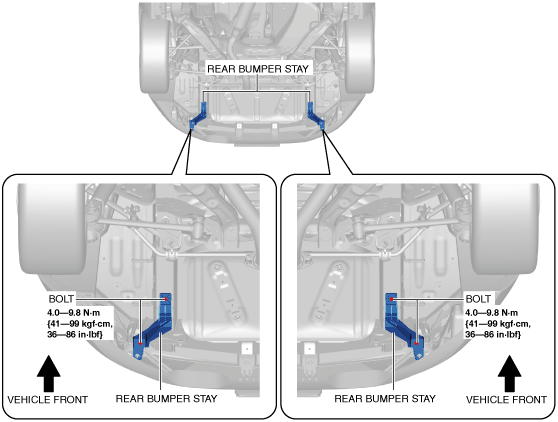

1.  Remove the bolts.

amxuuw00003100

Caution

•  Carefully remove the rear bumper stay from the rear bumper. If the rear bumper stay hooks are detached from the rear bumper with excessive force, the rear bumper stay hooks may be damaged because the rear bumper stay hooks and the rear bumper are engaged firmly.

2.  Move the rear bumper stays in the direction of the arrow shown in the figure and pull the rear bumper stay hooks out from the body.

amxuuw00003101

3.  Remove the rear bumper stay.

4.  Install in the reverse order of removal.
