REAR BUMPER RETAINER No.1 REMOVAL/INSTALLATION

id091000030400

1.  Remove the screws.

amxzzw00002928

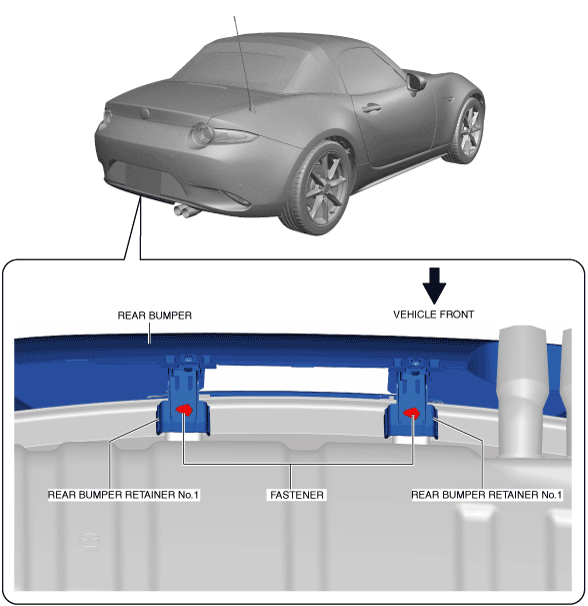

2.  Remove the fasteners.

amxzzw00002929

3.  Remove the rear bumper retainer No.1.

4.  Install in the reverse order of removal.
