FRONT BUMPER INSTALLATION

id091000804900

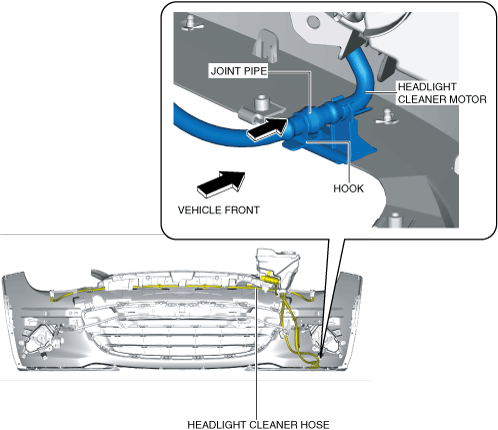

1. Connect the joint pipe to headlight cleaner motor. (with headlight cleaner system)

amxzzw00005107

2. Connect the connectors.

amxzzw00005108

3. Install the wiring harness clips.

4. Move the front under cover in the direction of the arrow shown in the figure and remove it.

amxzzw00005109

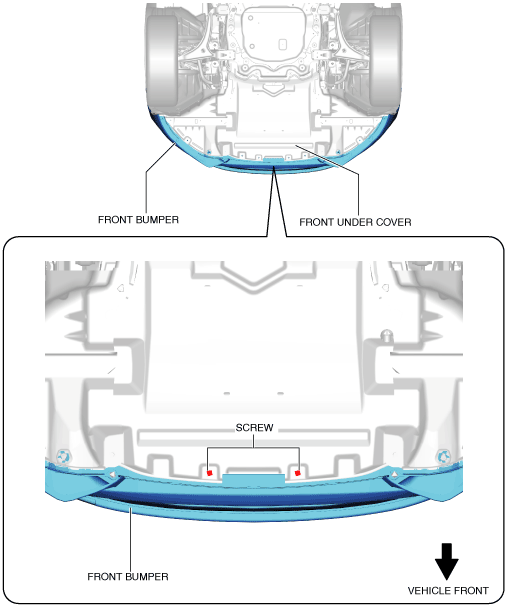

5. Install the screws.

amxuuw00003179

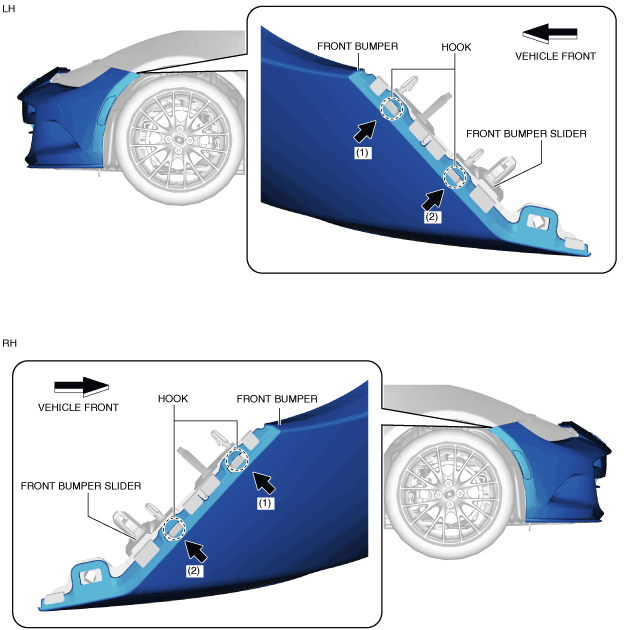

6. Install the front bumper to the front bumper slider in the order of the arrows shown in the figure.

amxuuw00003180

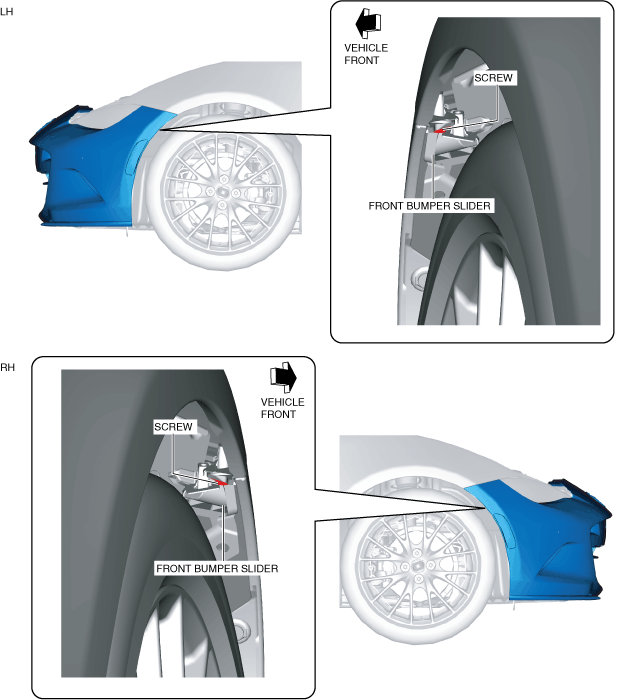

7. Install the screws.

amxzzw00005110

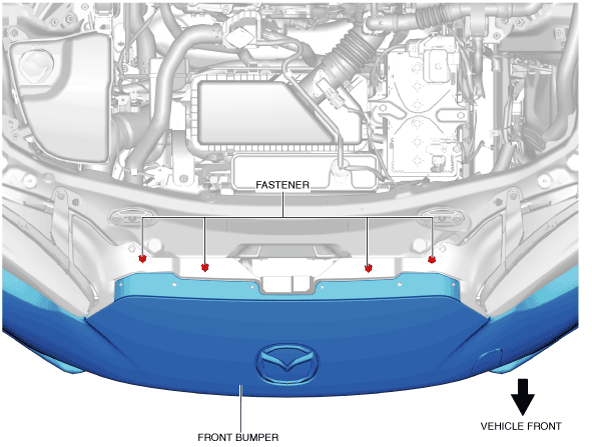

8. Install the fasteners.

amxuuw00003182

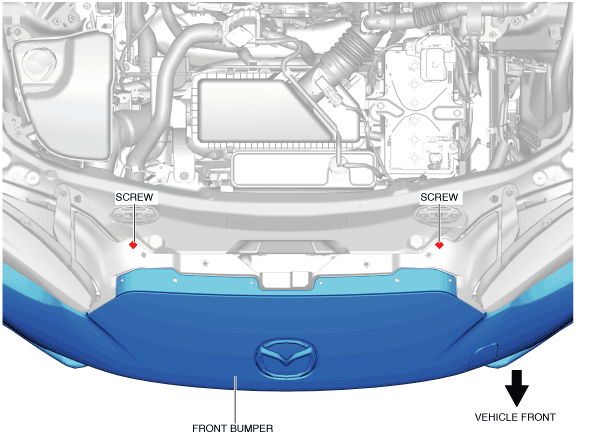

9. Temporarily tighten the screws.

amxuuw00003183

10. Adjust the front bumper position so that the clearance between the front bumper and the bonnet is within the specification.

amxzzw00004524

Standard clearance

a: 1.7—5.3 mm {0.07—0.20 in}

b: 1.7—5.3 mm {0.07—0.20 in}

c: 1.7—5.3 mm {0.07—0.20 in}

11. Completely tighten the screws tightened temporarily in Step 9.

amxuuw00003183

12. Measure the clearance between the front bumper and the bonnet and verify that it is within the standard clearance.

amxzzw00004524

Standard clearance

a: 1.7—5.3 mm {0.07—0.20 in}

b: 1.7—5.3 mm {0.07—0.20 in}

c: 1.7—5.3 mm {0.07—0.20 in}

• If not within the specification, repeat from Step 9 to Step 12 until the clearance between the front bumper and the bonnet is within the specification.

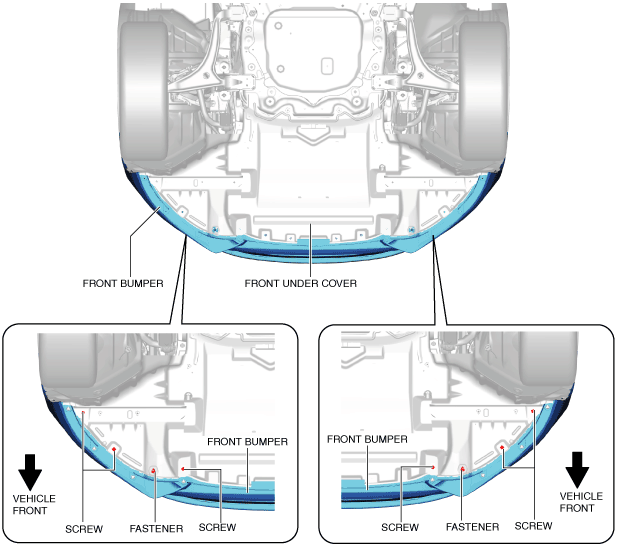

13. Install the screws and fasteners.

amxuuw00003185

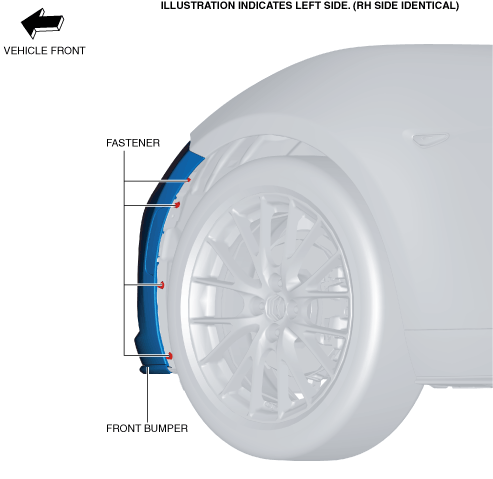

14. Install the fasteners.

amxzzw00005111

15. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
