BONNET DISASSEMBLY/ASSEMBLY
id091000899800

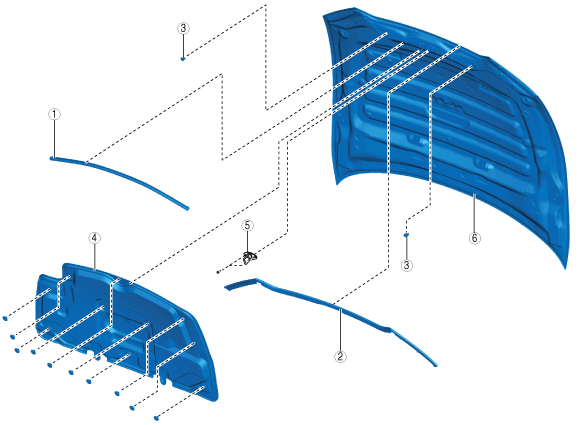

1. Disassemble in the order shown in the figure.
amxzzw00004482
|
|
1
|
Shroud seal weatherstrip
|
|
2
|
Parting seal weatherstrip
|
|
3
|
Stop rubber
|
|
4
|
Bonnet insulator
|
|
5
|
Bonnet striker
|
|
6
|
Bonnet
|
2. Assemble in the reverse order of disassembly.
