OUTER MIRROR GARNISH REMOVAL/INSTALLATION

id091200003000

Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.)

3.  Press the tabs of the outer mirror garnish using the remover tool and detach the tabs from the outer mirror housing.

amxzzw00005116

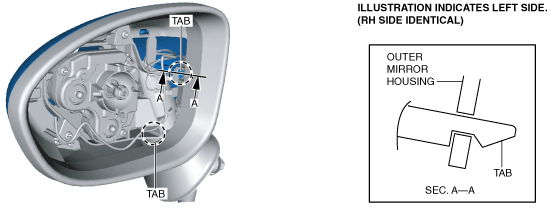

4.  Press the tab of the outer mirror garnish in the direction of the arrow shown in the figure using a tape-wrapped precision flathead screwdriver, and detach the tab from the outer mirror housing.

amxzzw00005117

5.  Remove the outer mirror garnish.

Installation

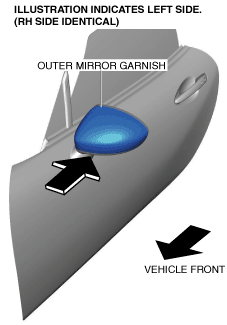

1.  Press the outer mirror garnish in the direction of the arrow shown in the figure.

amxuuw00003069

2.  Install the outer mirror glass. (See OUTER MIRROR GLASS INSTALLATION.)

3.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
