POWER WINDOW SYSTEM INITIALIZATION PROCEDURE

id091200004100

Note

•  Initial setting must be performed after performing any of the following procedure.

―  Power window main switch is replaced

―  Power window subswitch is replaced

―  Door glass is removed

―  Power window regulator is removed

―  Power window motor is removed

1.  Close the doors.

2.  Close the convertible top and secure the top lock. (convertible top)

3.  Switch the ignition ON. (engine on or off)

4.  Fully close the retractable hardtop. (retractable hardtop)

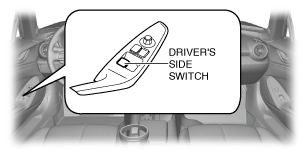

5.  Operate the driver's side switch on the power window main switch to fully open the door glass (driver's side).

amxzzw00003493

6.  Operate the driver's side switch on the power window main switch and keep the door glass (driver's side) fully closed for approx. 2 sec.

7.  Operate the passenger's side switch on the power window main switch or the power window subswitch to fully open the door glass. (passenger's side)

amxzzw00003494

8.  Operate the passenger's side switch on the power window main switch or the power window subswitch and keep the door glass (passenger's side) fully closed for approx. 2 sec.
