POWER WINDOW SUBSWITCH

id091200010900


Purpose

•  Transmits the power window subswitch operation of the passenger to the power window control module.

Function


Manual

•  When the power window subswitch is operated for manual open/close operation, it sends a manual open/close signal to the power window control module.


Auto

•  When the power window subswitch is operated for auto open/close operation, it sends an auto open/close signal to the power window control module.


Construction

•  The power window subswitch is located on the passenger's side.
amxzzn00000918

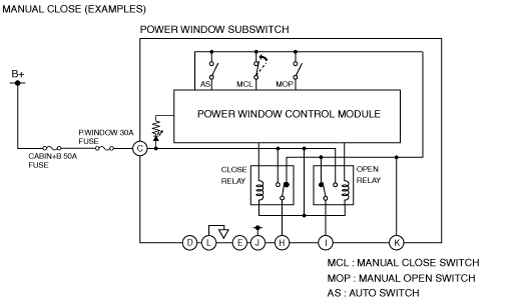

Operation

•  Contact points for door glass opening/closing are changed by operating the power window subswitch.
amxuun00000761

Fail-safe

•  Not applicable
