GLASS/WINDOWS/MIRRORS


id091200012000


Outline

•  A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window subswitch.
•  A power outer mirror system has been adopted with which the outer mirrors can be operated remotely by operating the power outer mirror switch.
•  A rear window defogger has been adopted with which rear window glass fogging can be cleared by operating the rear window defogger switch.
•  Heated outer mirrors have been adopted which are can remove fogging on the surface of the outer mirrors in conjunction with the rear window defogger. (With heated outer mirrors)
•  An auto-dimming rearview mirror has been adopted which prevents the driver from being blinded by light from vehicles at the rear for assured safety while driving at night. (With auto-dimming rearview mirror)

Glass/window/mirror specification


Green glass
Windshield
×
Door glass
×
Rear window glass
×


Structural View

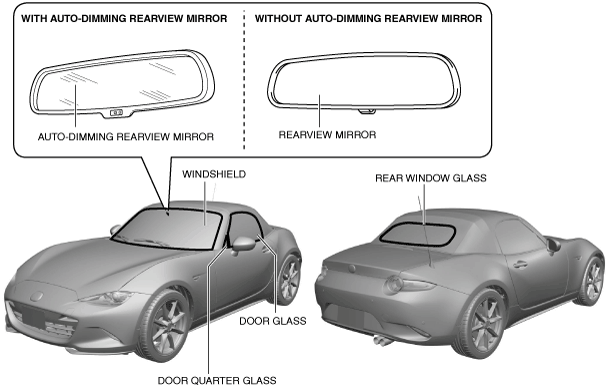

Glass/window/mirror

amxzzn00000908


Power window system

amxzzn00000909

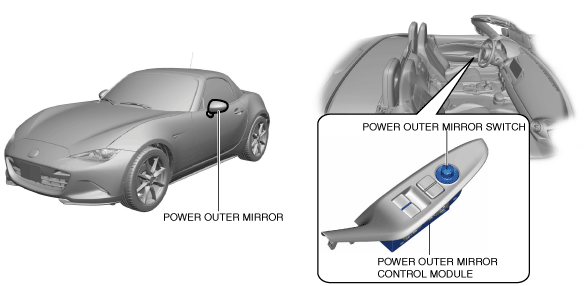

Power outer mirror system

amxzzn00000910

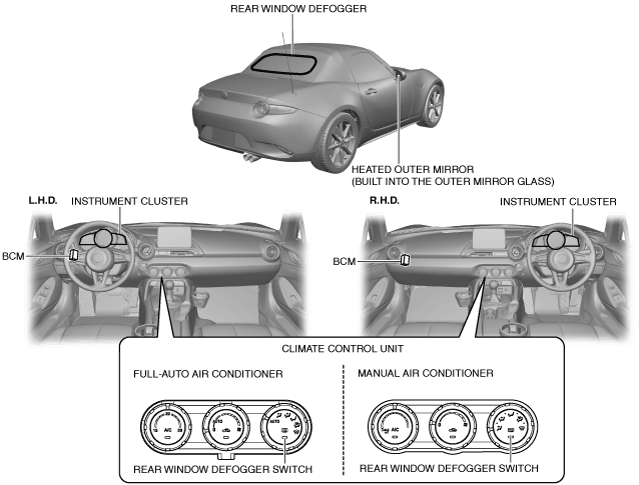

Rear window defogger/Heated outer mirror

amxzzn00001037
