POWER OUTER MIRROR SYSTEM

id091200013500


Outline

•  The driver can operate the outer mirrors remotely by operating the power outer mirror switch.

Function


Outer mirror glass adjustment function

•  Outer mirror glass can be adjusted up/down and left/right electrically by operating the power outer mirror switch.

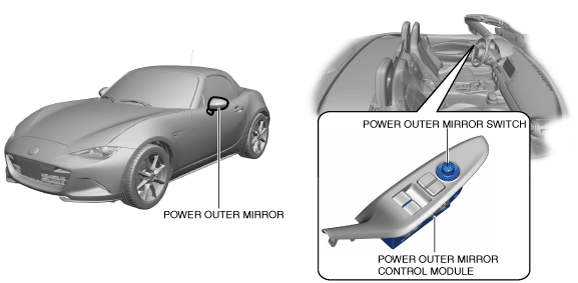

Structural View

amxzzn00000921

System Wiring Diagram

amxuun00000762

Operation


Outer mirror glass adjustment operation (Example: adjusting left outer mirror upward)

•  When the upward switch turns on (1), the up/down adjustment motor operates upward (2) and the outer mirror operates upward.
amxuun00000763


Fail-safe

•  Not applicable
