SENSOR COVER REMOVAL/INSTALLATION

id091200025000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

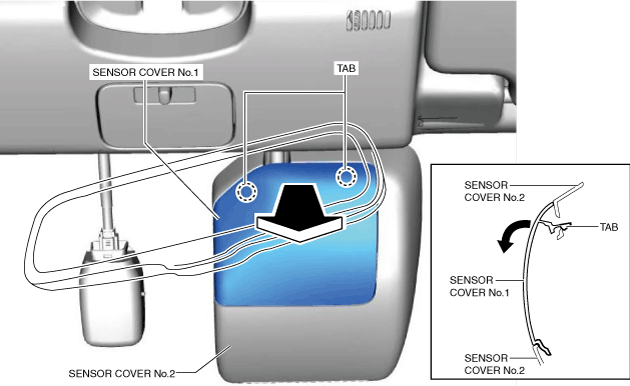

2.  Move sensor cover No.1 in the direction of the arrow shown in the figure and detach the tabs from sensor cover No.2.

amxzzw00005121

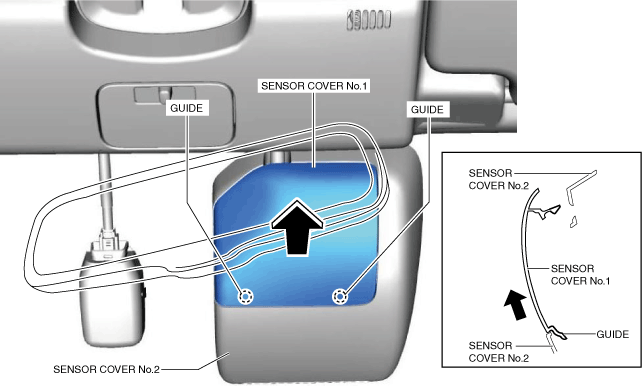

3.  Move sensor cover No.1 in the direction of the arrow shown in the figure and remove it while detaching the guides.

amxzzw00005122

4.  Disconnect the connector.

amxuuw00003025

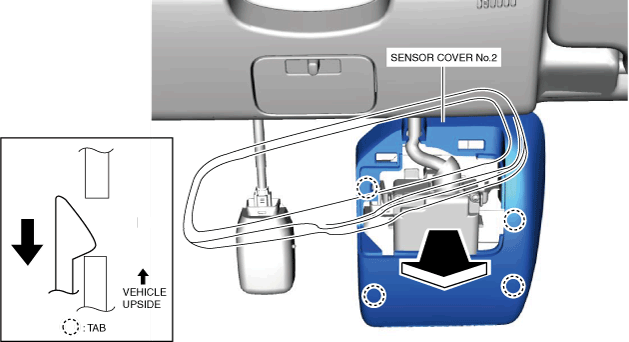

5.  Move sensor cover No.2 in the direction of the arrow shown in the figure and remove it while detaching the tabs.

amxuuw00003026

6.  Install in the reverse order of removal.
