SEAT

id091300009300

Outline

• The following 2 types of seats have been adopted.

― Standard type

― Sports type (RECARO)

• Seats with side air bag modules have been adopted to soften the impact to the chest, abdominal, and lumbar areas of the occupants during a collision. (See SIDE AIR BAG MODULE.)

• A seat warmer system has been adopted to provide occupants heating comfort. (With seat warmer system)

• Headrest speakers have been adopted to the head restraints on the driver's and passenger's seats to enjoy listening to radio or music comfortably for the occupants. (See SPEAKER [WITHOUT CENTER DISPLAY].)(See SPEAKER [WITHOUT Bose®, WITH CENTER DISPLAY].)(See SPEAKER [WITH Bose®, WITH CENTER DISPLAY].)

• An occupancy sensor has been adopted to the seat on the passenger's side to determine the seating condition of the passenger seat. (except European (L.H.D. U.K.) specs.)

• The following parts have been adopted to the passenger's seat to mediate injury to a child during a collision or emergency braking.

― ISOFIX anchor

― Top tether anchor

Specification

• The driver's and passenger's seat specifications are as follows:

Driver's seat

Standard Type

×: Applicable

—: Not applicable

Specification			Side air bag module	Seat warmer system	Driver-side headrest speaker	Occupancy sensor^*1	Occupant classification sensor^*2
Cloth	Without center display	Without Bluetooth^® unit	×	—	—	—	—
	Without center display	With Bluetooth^® unit	×	—	×	—	—
	With center display	Without Bose^®	×	×	×	—	—
	With center display	With Bose^®	×	×	×	—	—
Leather	Without center display	Without Bluetooth^® unit	×	×	—	—	—
	Without center display	With Bluetooth^® unit	×	×	×	—	—
	With center display	Without Bose^®	×	×	×	—	—
	With center display	With Bose^®	×	×	×	—	—

*1 :Except European (L.H.D. U.K.) specs.

*2 :European (L.H.D. U.K.) specs.

Sports Type (RECARO)

×: Applicable

—: Not applicable

Specification			Side air bag module	Seat warmer system	Driver-side headrest speaker	Occupancy sensor^*3	Occupant classification sensor^*4
Cloth + leather	With center display	Without Bose^®	×	×	×	—	—
Cloth + leather	With center display	With Bose^®	×	×	×	—	—

*3 :Except European (L.H.D. U.K.) specs.

*4 :European (L.H.D. U.K.) specs.

Passenger's seat

Standard Type

×: Applicable

—: Not applicable

Specification			Side air bag module	Seat warmer system	Passenger-side headrest speaker	Occupancy sensor^*5	Occupant classification sensor^*6
Cloth	Without center display	Without Bluetooth^® unit	×	—	—	×	×
	Without center display	With Bluetooth^® unit	×	—	—	×	×
	With center display	Without Bose^®	×	×	—	×	×
	With center display	With Bose^®	×	×	×	×	×
Leather	Without center display	Without Bluetooth^® unit	×	×	—	×	×
	Without center display	With Bluetooth^® unit	×	×	—	×	×
	With center display	Without Bose^®	×	×	—	×	×
	With center display	With Bose^®	×	×	×	×	×

*5 :Except European (L.H.D. U.K.) specs.

*6 :European (L.H.D. U.K.) specs.

Sports Type (RECARO)

×: Applicable

—: Not applicable

Specification			Side air bag module	Seat warmer system	Passenger-side headrest speaker	Occupancy sensor^*7	Occupant classification sensor^*8
Cloth + leather	With center display	Without Bose^®	×	×	—	×	×
Cloth + leather	With center display	With Bose^®	×	×	×	×	×

*7 :Except European (L.H.D. U.K.) specs.

*8 :European (L.H.D. U.K.) specs.

Structural View

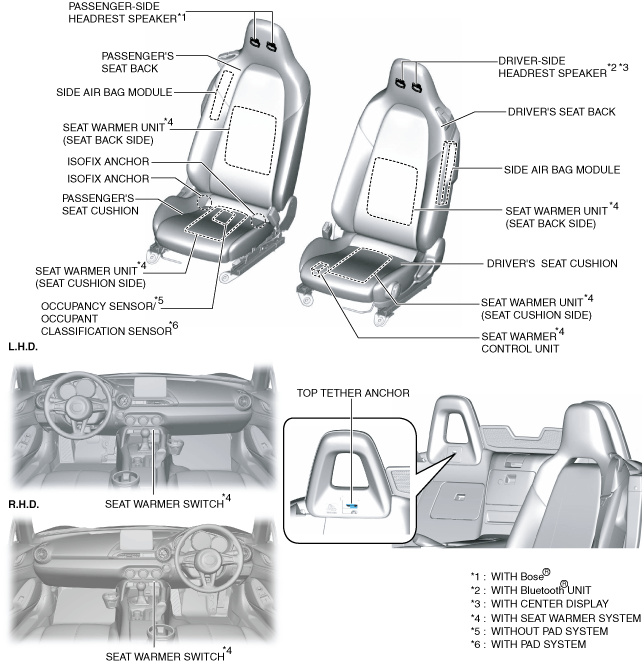

Standard Type

amxzzn00002034

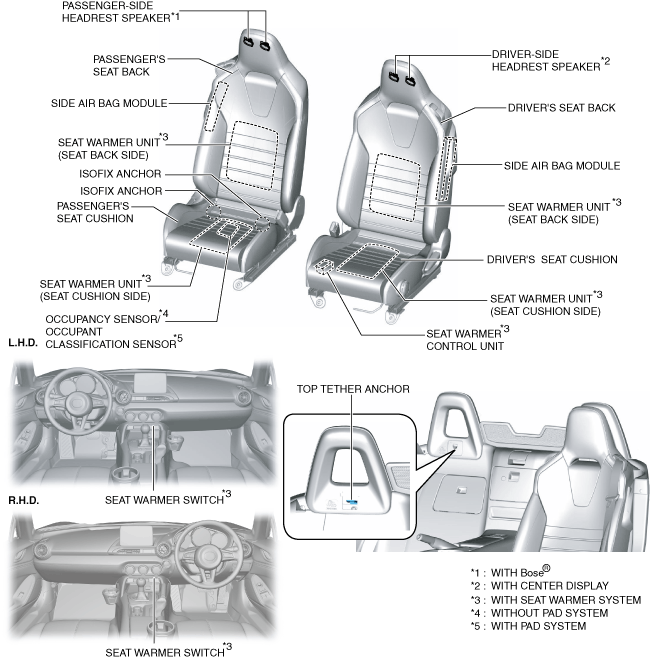

Sports Type (RECARO)

amxzzn00001704
