OCCUPANCY SENSOR INSPECTION
id091300998800
-
Warning
-
• Handling a seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the seat (side air bag integrated). (See
AIR BAG SYSTEM SERVICE WARNINGS.) (See
AIR BAG SYSTEM SERVICE CAUTIONS.)
• If the sliding mechanisms on both sides are not locked after assembling the seat, the seat will operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the seat, shake it up and down and verify that the sliding mechanism on the both sides are locked.
-
Note
-
• If cargo is put on the sensor detection area of the occupancy sensor, the sensor may respond.
1. Switch the ignition off.
2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
3. Remove the passenger-side seat. (See SEAT REMOVAL/INSTALLATION.)
4. Disconnect the occupancy sensor connector.
5. Verify that the continuity between the occupancy sensor terminals is as indicated in the table.

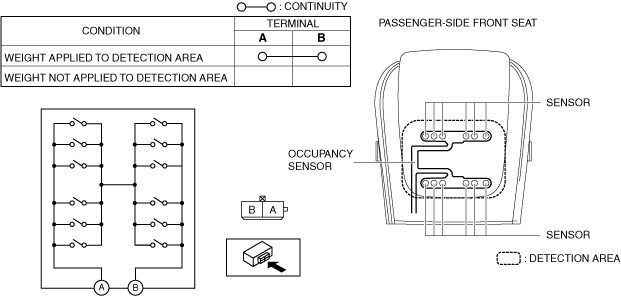

Except sports type (RECARO) (Australian specs.)

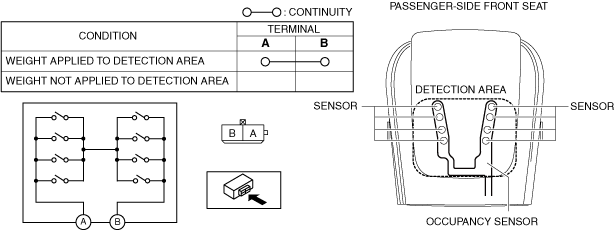

Sports type (RECARO) (Australian specs.)
-
