INTRUDER SENSOR INSPECTION

id091400517300

1. Open the trunk lid.

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2) Female wedge (See FEMALE WEDGE REMOVAL/INSTALLATION.)

(3) Front header trim (See FRONT HEADER TRIM REMOVAL/INSTALLATION.)

4. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

• If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

― If the system does not operate normally even though the parts under Inspection Item(s) and related wiring harnesses do not have any malfunction, replace the intruder sensor. (See INTRUDER SENSOR REMOVAL/INSTALLATION.)

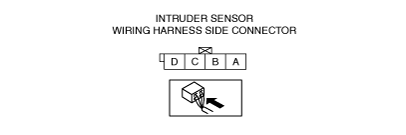

Terminal Voltage Table (Reference)

am2zzw00008337

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

B

Ground

BCM

Under any condition

1.0 or less

BCM

C

DATA

BCM

Because this terminal is for communication, determination using terminal voltage inspection is not possible.

D

Power supply

BCM

Under any condition

B+

BCM

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)	Inspection item (s)
B	Ground	BCM	Under any condition	1.0 or less	BCM
C	DATA	BCM	Because this terminal is for communication, determination using terminal voltage inspection is not possible.
D	Power supply	BCM	Under any condition	B+	BCM

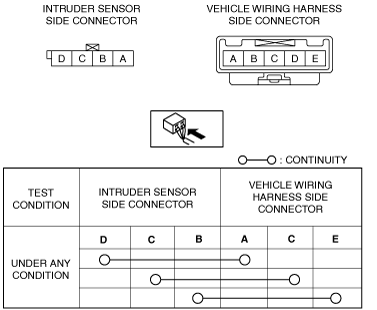

Continuity Inspection Of Short Wiring Harness Connector

1. Verify that the continuity is as indicated in the table.

am2zzw00008338

• If not as indicated in the table, replace the short wiring harness.
