RADIATOR GRILLE DISASSEMBLY/ASSEMBLY

id091600460100

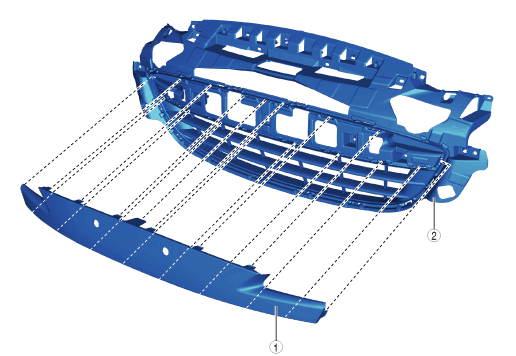

1.  Disassemble in the order shown in the figure.

amxuuw00003206

1	Radiator grille cover
2	Radiator grille

2.  Assemble in the reverse order of disassembly.
