FRONT SPLASH SHIELD No.1 REMOVAL/INSTALLATION

id091600806800

With i-ELOOP

1.  Remove the front mudguard No.2. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

2.  Remove the fasteners.

amxzzw00004740

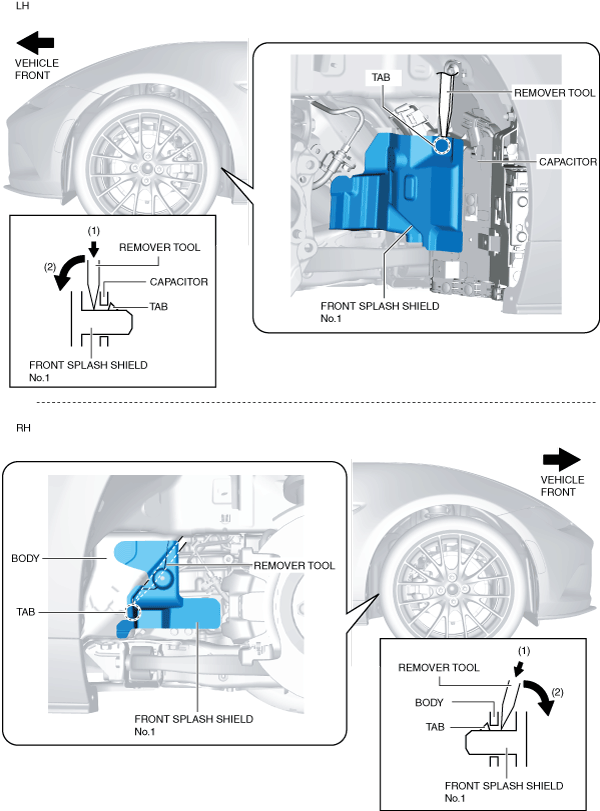

3.  Move the remover tool in the order of the arrows shown in the figure and remove front splash shield No.1.

amxzzw00004741

4.  Install in the reverse order of removal.

Without i-ELOOP

1.  Remove the front mudguard No.2. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

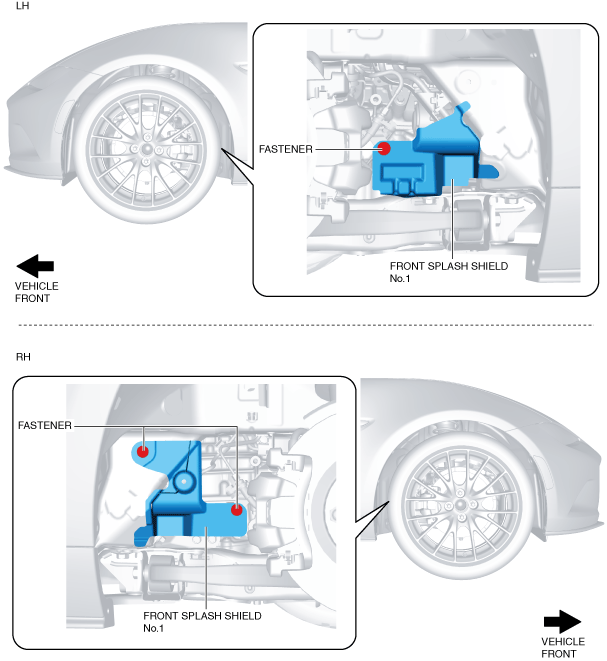

2.  Remove the fasteners.

amxzzw00004742

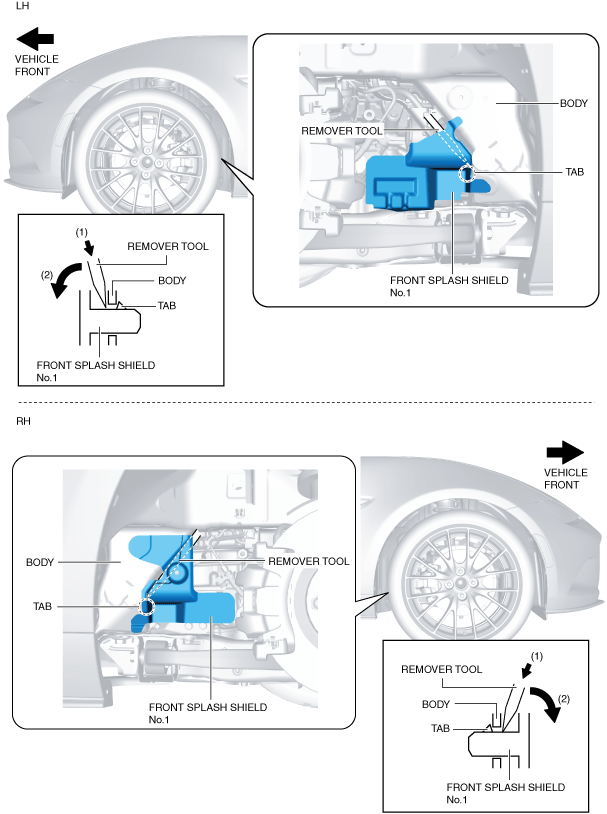

3.  Move the remover tool in the order of the arrows shown in the figure and remove front splash shield No.1.

amxzzw00004743

4.  Install in the reverse order of removal.
