FRONT SPLASH SHIELD No.2 REMOVAL/INSTALLATION

id091600806900

1.  Lift up the vehicle.

2.  Remove the tire.

3.  Remove the front mudguard No.1. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

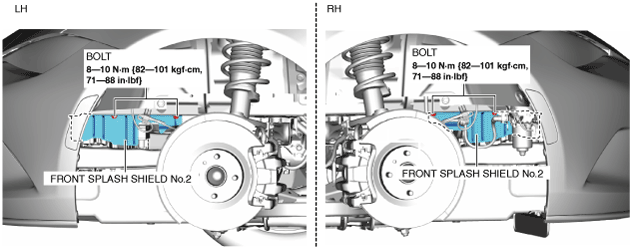

4.  Remove the bolts.

amxzzw00002918

5.  Remove the front splash shield No.2.

6.  Install in the reverse order of removal.
