ORNAMENT INSTALLATION

id091600994300

Caution

•  If the installation work for the ornament is performed without cleaning and degreasing the ornament installation surface, the ornament could fall off after installation. Before installing the ornament, clean and degrease the ornament and the ornament installation area.

30TH Ornament

1.  Degrease the adhesion area of the ornament.

2.  Warm the attachment area on the vehicle side and the double-sided adhesive tape on the underside of the ornament between 15 °C {59 °F} and 40 °C {104 °F}using a heat gun.

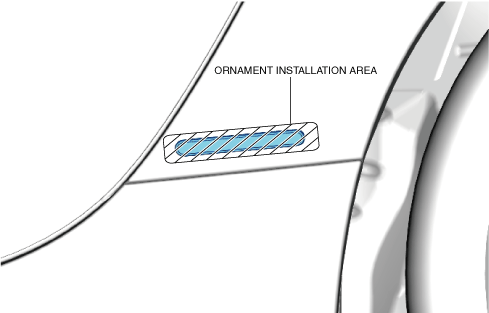

amxuuw00006984

3.  Install the ornament to the position shown in the figure.

Rear fender panel (Driver-side)

amxzzw00005752

4.  Press the ornament with a force of 29.4 N {3.00 kgf, 6.61 lbf} or more.

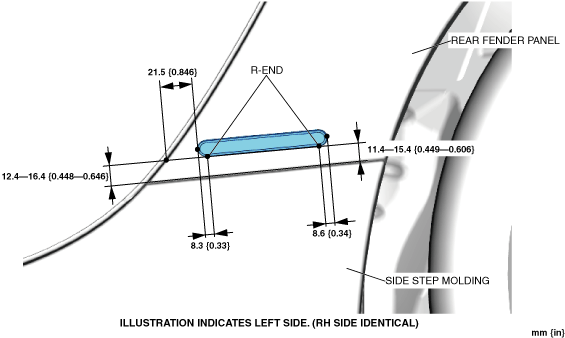

5.  Verify that the ornament position is within the specification shown in the figure.

amxzzw00005753

100YEARS Ornament

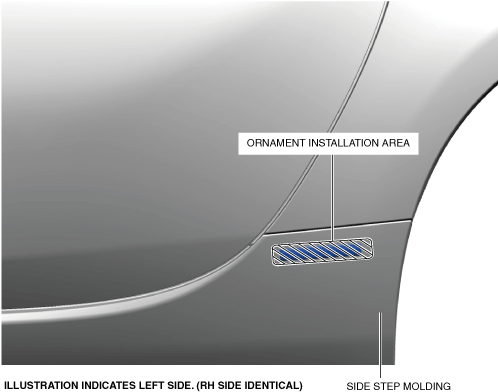

1.  Remove any grease or dirt from the ornament installation surface of the side step molding.

amxuuw00007072

2.  Warm the double-sided adhesive tape on the underside of the ornament to between 15 °C {59 °F} and 40 °C {104 °F} using a heat gun.

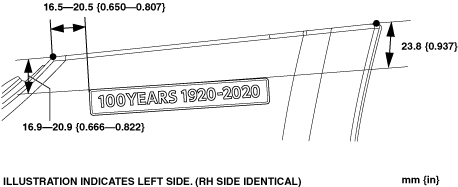

3.  Install the ornament to the position shown in the figure.

amxuuw00007073

4.  Press the ornament to adhere the double-sided adhesive tape to the ornament installation area.
