TIRE HOUSE TRIM REMOVAL/INSTALLATION

id091700603300

1.  Remove the scuff plate. (See SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the fasteners.

amxzzw00004436

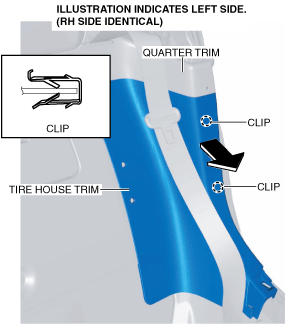

3.  Move the tire house trim in the direction of the arrow shown in the figure and detach the clips from the body panel.

amxzzw00004437

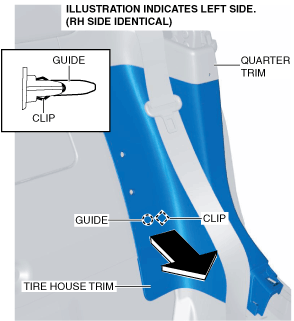

4.  Move the tire house trim in the direction of the arrow shown in the figure and detach the clip and guide from the body panel.

amxzzw00004438

5.  Remove the tire house trim while sliding it in the direction of the arrow shown in the figure.

amxzzw00004439

6.  Install in the reverse order of removal.
