PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION

id091700606300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Remove the seaming welt.

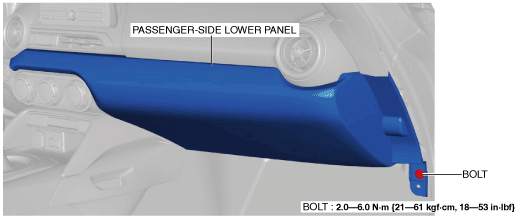

4.  Remove the bolt.

amxuuw00002778

5.  Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips, hook and guide from the dashboard.

amxzzw00004791

6.  Install in the reverse order of removal.
