DOOR TRIM REMOVAL/INSTALLATION

id091700607900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the inner handle cover while detach tabs, pin.

amxuuw00002783

3.  Remove the recess cover.

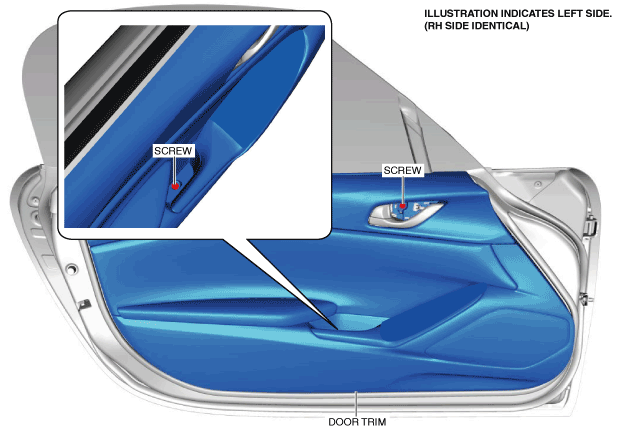

4.  Remove the screw.

amxuuw00002784

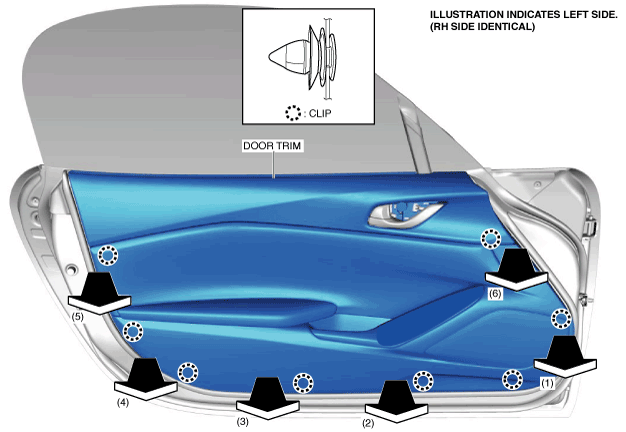

5.  Move the door trim in the order of arrows (1), (2), (3), (4),(5) and (6) shown in the figure and detach the clips.

amxuuw00002785

6.  Remove the door trim in the direction of the arrow shown in the figure.

amxuuw00002786

7.  Remove tab A in the direction of the arrow (1) shown in the figure.

amxzzw00004793

8.  Remove the inner handle in the direction of the arrow (2) shown in the figure while detaching tab B.

9.  Disconnect the connector.

10.  Install in the reverse order of removal.
