QUARTER TRIM REMOVAL/INSTALLATION

id091700609300

Convertibel Top

1.  Remove the front seat back bar garnish. (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

2.  Remove the fastener.

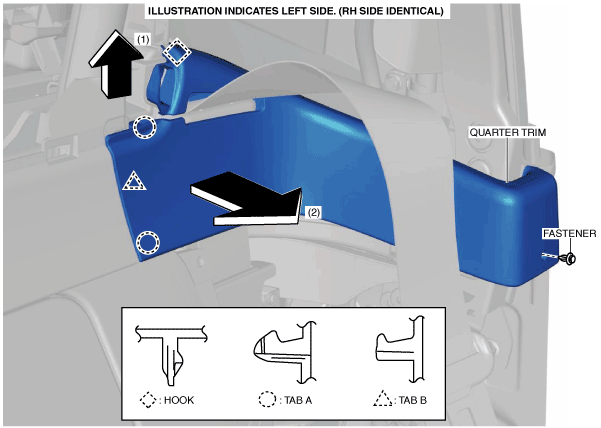

amxuuw00002808

3.  Move the quarter trim in the order of arrows (1) and (2) and detach the hook and tabs A and B.

4.  Pull the seat belt out from the slit and remove the quarter trim.

5.  Install in the reverse order of removal.

Retractable Hardtop

1.  Using the retractable hardtop switch, keep the front roof half-open.

amxzzw00004121

2.  Remove the front seat back bar garnish. (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

3.  Remove the fastener.

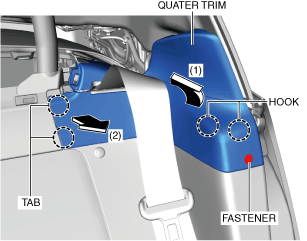

amxzzw00004809

4.  Move the quarter trim in the direction of arrow (1) shown in the figure and unhook the hooks.

5.  Move the quarter trim in the direction of arrow (2) shown in the figure and remove the tabs.

6.  Pull the seat belt out from the slit and remove the quarter trim.

7.  Install in the reverse order of removal.
