PARTITION BOARD REMOVAL/INSTALLATION

id091700610000

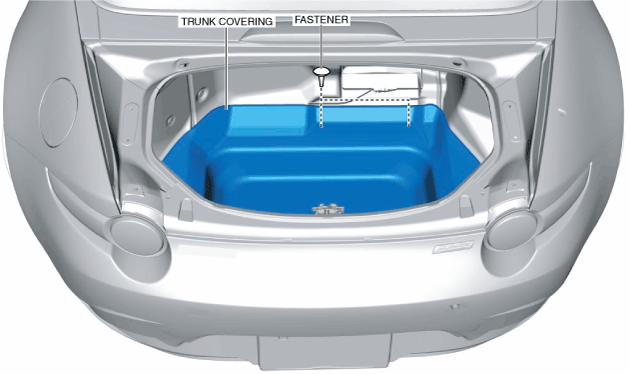

1.  Remove the fasteners.

amxzzw00004813

2.  Partially peel back the front side of the trunk covering.

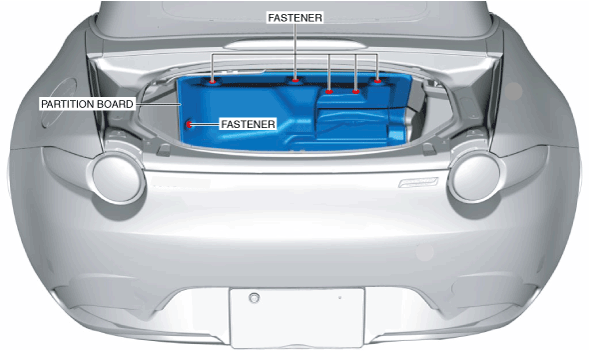

3.  Remove the fasteners.

amxzzw00004814

4.  Remove the partition board.

5.  Install in the reverse order of removal.
