RUNNING LIGHT SYSTEM

id091800011700


Outline

•  The running light system automatically turns on the running lights and TNS (parking lights) while the vehicle is driven.

Functions

•  The BCM controls the running lights according to the vehicle conditions.

—: Not applicable

Vehicle speed

Ignition switch

Parking brake

Selector lever position (AT)

Light switch position

Dimmer switch position

Auto light system

Running light
3 km/h {2 mph} or more
ON (engine on)
Release
Except P position
OFF
HI
—
ON
LO
ON
FLASH-TO-PASS
ON
AUTO
HI
Off
ON
On
OFF
LO
Off
ON
On
OFF
FLASH-TO-PASS
Off
ON
On
OFF
TNS (parking lights)
HI
—
OFF
LO
OFF
FLASH-TO-PASS
OFF
HEAD
HI
—
OFF
LO
OFF
FLASH-TO-PASS
OFF


Personalization features

•  The running light system can be switched between operable and inoperable (initial setting is On (running light illumination)). For details on the personalization features, refer to the [LIGHTING SYSTEM PERSONALIZATION]. (See LIGHTING SYSTEM PERSONALIZATION.)


Structural View

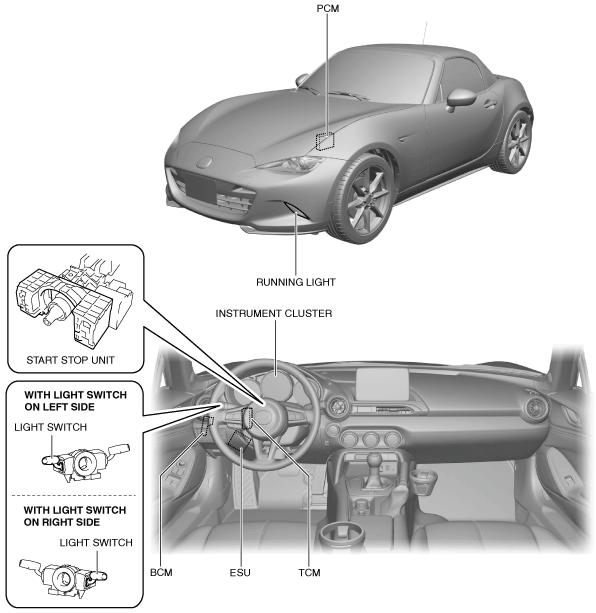

amxzzn00000807

System Wiring Diagram

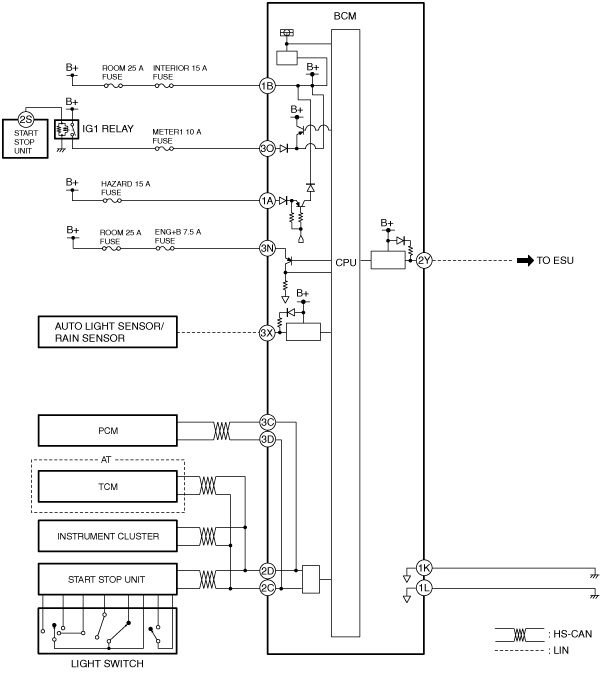

amxzzn00000808

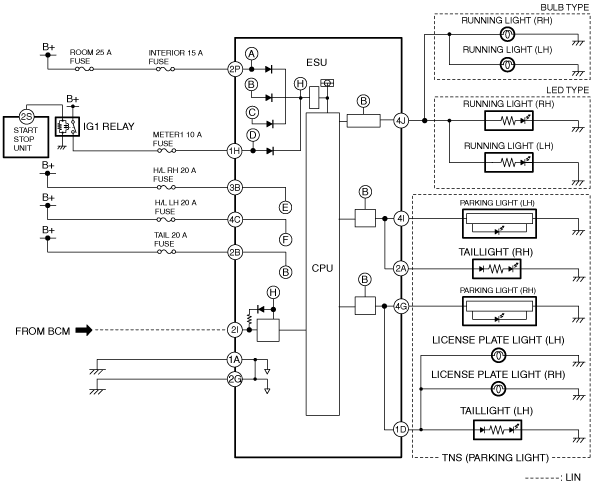

amxzzn00000809

Operation


Operation conditions

•  When the following operation conditions are met, the BCM activates the running light system.
―  Vehicle speed: 3 km/h {2 mph} or more (vehicle speed signal)
―  Ignition switched ON (engine on) (ignition switch position signal)
―  Parking brake: Released (parking brake switch signal)
―  Selector lever position: Except P position (selector lever position signal) (AT)
―  Light switch position: OFF or AUTO (auto light system not operated) (light switch signal)


Operation

1.  When the operation conditions are met (1), the BCM sends (2) a running light on request signal to the electrical supply unit (ESU) via LIN communication.

2.  When the electrical supply unit (ESU) receives the running light on request signal, it turns the running lights and TNS (parking lights) on (3).

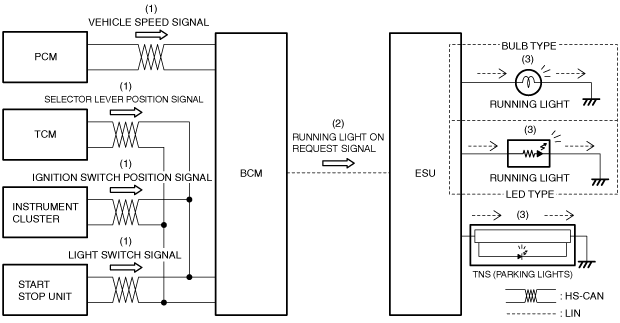

amxzzn00000810
