INTERIOR LIGHTING SYSTEM
id091800012200
Outline
• A room light control system has been adopted in which the illumination time and illumination level of the interior lights change.
Function
• The BCM turns the interior light on/off based on each switch and door/trunk lid open/close condition signal.
Interior light off function
-
• When the BCM receives a lock signal on the remote transmitter with the ignition switched off and all doors/trunk lid closed, it automatically turns the interior light off.

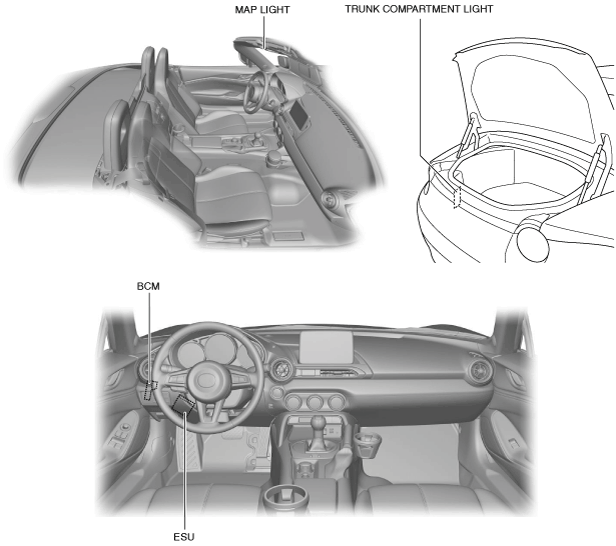

Structural View

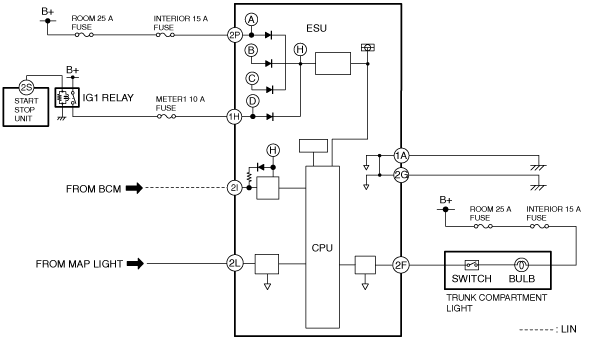

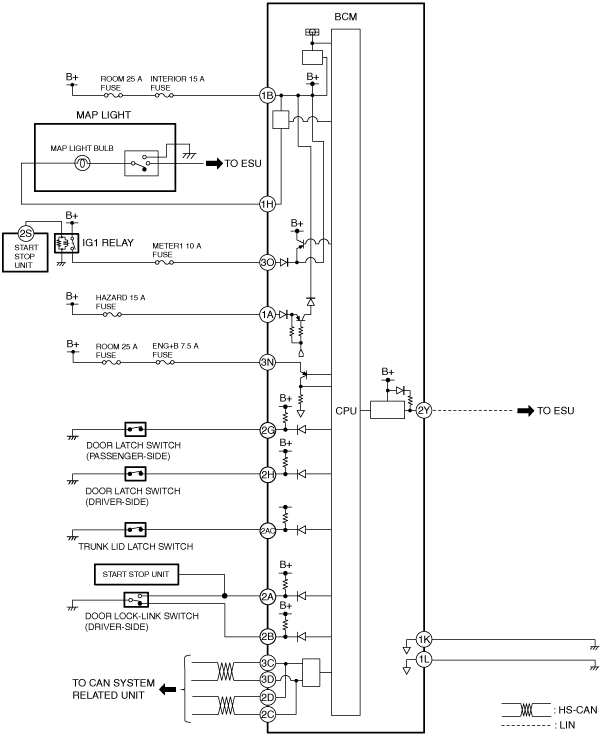

System Wiring Diagram
