REAR FOG LIGHT REMOVAL/INSTALLATION

id091800805100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear splash shield. (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

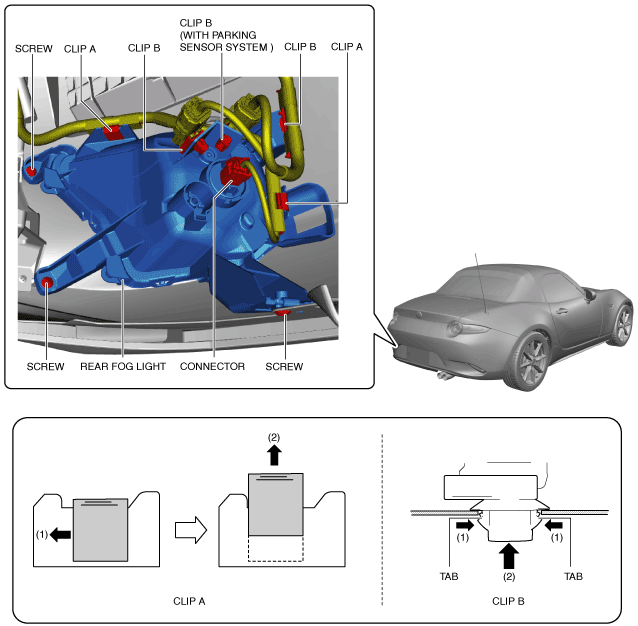

L.H.D.

amxzzw00002957

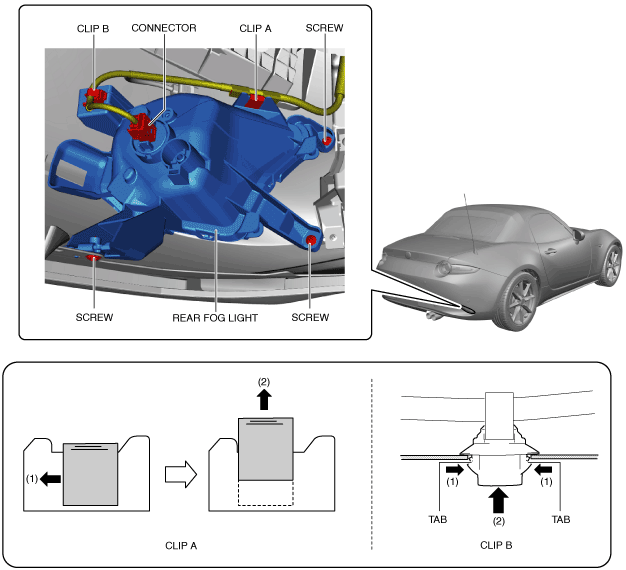

R.H.D.

amxzzw00002958

4.  Remove the screws.

5.  While sliding clip A in the direction of arrow (1) shown in the figure, pull clip A in the direction of arrow (2) to detach it from the rear fog light.

6.  While pressing the clip B tabs in the direction of arrows (1) shown in the figure, press the clip B in the direction of arrow (2) to detach the clip B tabs from the rear fog light.

7.  Remove the rear fog light.

amxzzw00003202

8.  Install in the reverse order of removal.
