FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY

id091800816000

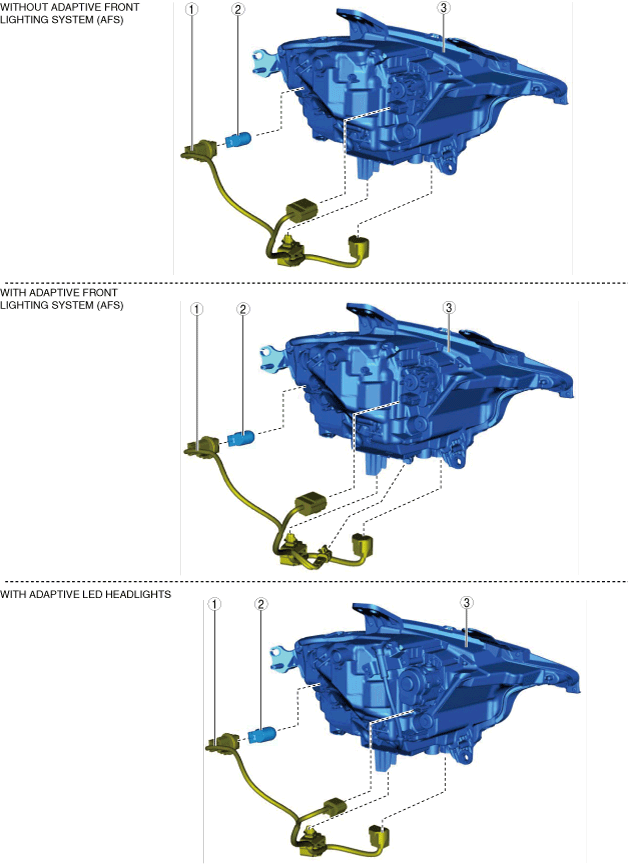

1.  Disassemble in the order shown in the figure.

amxzzw00004900

1	Short cord (See Short Cord Removal Note.)
2	Front turn light bulb (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
3	Front combination light

2.  Assemble in the reverse order of disassembly.

Short Cord Removal Note

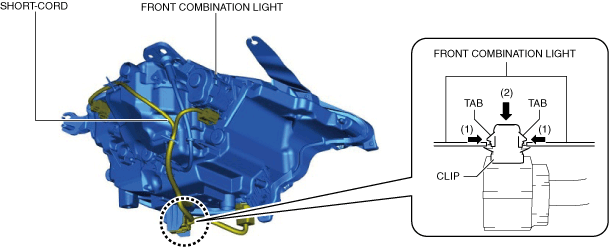

1.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.

amxzzw00004901

2.  Pull the clip out of the front combination light and remove the short cord.
