HEADLIGHT CLEANER SYSTEM


id091900103400


Outline

•  The headlight cleaner system injects washer fluid from the headlight cleaner nozzles equipped on the front bumper to remove dirt from the headlights.

Function

•  With the ignition switched ON (engine off or on) and the headlights turned on, the BCM operates the headlight cleaner system according to the washer switch operation.
―  Auto operation control
•  When the washer switch on signal is detected the first time with the headlights turned on, the headlight cleaner system operates. Afterwards, the headlight cleaner system operates every fifth times the washer switch is turned on.
amxzzn00000858
―  Manual operation control

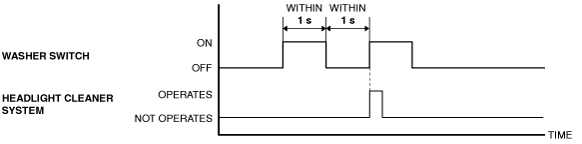

•  When the washer switch is on two times within the range shown in the figure, the headlight cleaner system operates.
amxzzn00000859

Structural View

amxzzn00000860

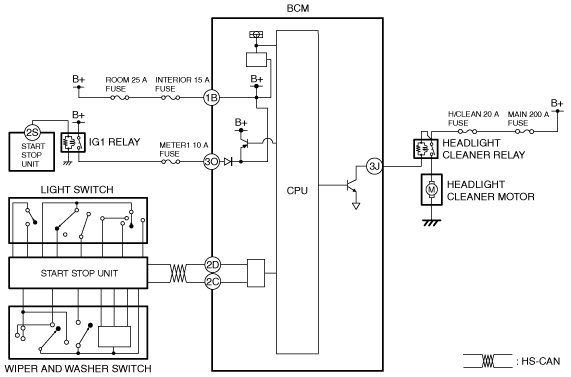

System Wiring Diagram

amxzzn00000861

Operation


Auto operation

Operation condition
•  The headlight cleaner system operates when the following conditions are met.
―  Ignition is switched ON (engine off or on)
―  Headlights are turned on at LO or HI
―  After above conditions are met, washer switch is on the first time or fifth time
Operation

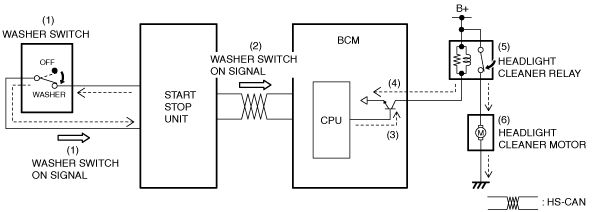

1.  When the washer switch is turned on (1), the start stop unit sends (2) a washer switch on signal to the BCM via CAN communication.
2.  When the BCM receives a washer switch on signal the first time with the operation conditions met, it turns the transistor on (3).
3.  When the transistor turns on, a ground circuit with the headlight cleaner relay is established (4), and the headlight cleaner relay turns on (5).
4.  When the headlight cleaner relay turns on, the headlight cleaner motor is activated (6) and washer fluid is injected from the headlight cleaner nozzles.
5.  The BCM counts the number of times the washer switch on signal is received, and operates the headlight cleaner automatically every fifth count.
amxzzn00000862


Manual operation

Operation condition
•  The headlight cleaner system operates when the following conditions are met.
―  Ignition is switched ON (engine off or on)
―  Headlights are turned on at LO or HI
―  After above conditions are met, washer switch is on two times within a certain period of time
Operation
1.  When the washer switch is on (1), the start stop unit sends (2) an washer switch on signal to the BCM via CAN communication.
2.  When the BCM receives a washer switch on signal two times within a certain period of time with the operation conditions met, it turns the transistor on (3).
3.  When the transistor turns on, a ground circuit with the headlight cleaner relay is established (4), and the headlight cleaner relay turns on (5).
4.  When the headlight cleaner relay is on, the headlight cleaner motor is activated (6) and washer fluid is injected from the headlight cleaner nozzles.
amxzzn00000862
