WASHER HOSE REMOVAL/INSTALLATION

id091900804900

Washer Hose A

1. Turn the steering wheel to full right lock.

2. Lift up the vehicle.

3. Remove the front mudguard No.2. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

4. Disconnect washer hose A from the washer motor.

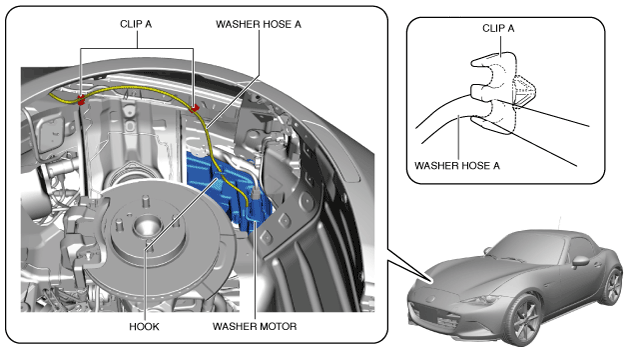

amxuuw00004710

5. Pull washer hose A out from the washer tank hook.

6. Pull out washer hose A from clip A.

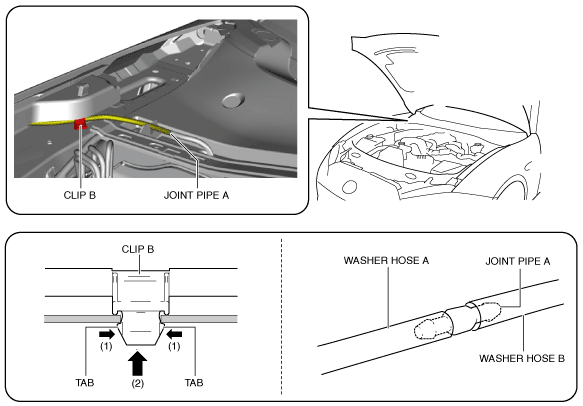

7. While pressing the clip B tabs in the direction of arrows (1) shown in the figure, press the clip B in the direction of arrow (2) to detach the clip B tabs from the body.

amxuuw00004711

8. Disconnect washer hose B from joint pipe A.

9. Remove washer hose A.

10. Install in the reverse order of removal.

Washer Hose B

L.H.D.

1. Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

3. Disconnect washer hose C from joint pipe B.

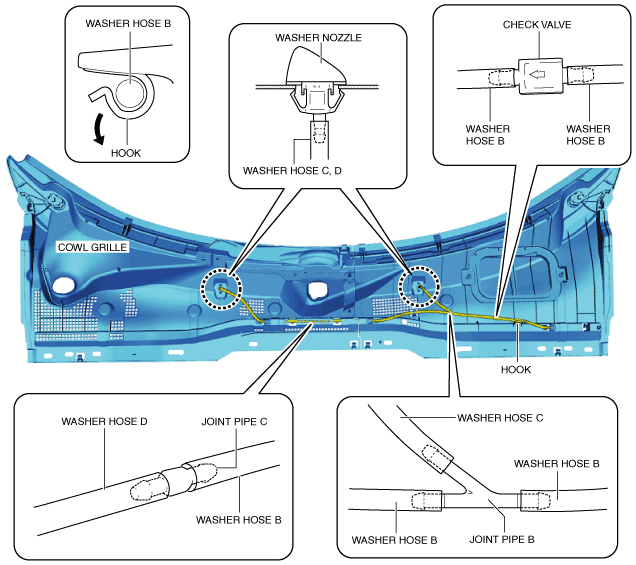

amxuuw00004712

4. Disconnect washer hose B from joint pipe C.

5. Pull out washer hose B from the hook.

6. Remove washer hose B.

7. Install in the reverse order of removal.

R.H.D.
