CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY

id092000031600

1. Disassemble in the order indicated in the table.

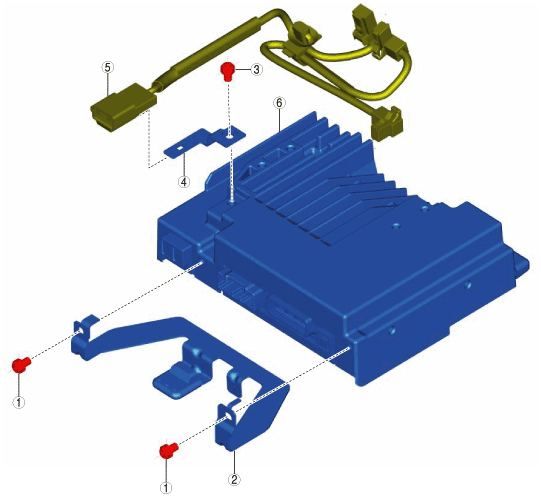

ardjjw00004008

1

Screw A

2

Bracket A

3

Screw B

4

Bracket B

5

Short-cord

(See Short-cord Assembly Note.)

6

CMU

2. Assemble in the reverse order of disassembly.

Short-cord Assembly Note

1. When assembling the short-cord, press it into the groove of the CMU.

amxzzw00004561

1	Screw A
2	Bracket A
3	Screw B
4	Bracket B
5	Short-cord (See Short-cord Assembly Note.)
6	CMU
