TUNER AND AMP UNIT (TAU) DISASSEMBLY/ASSEMBLY

id092000150200

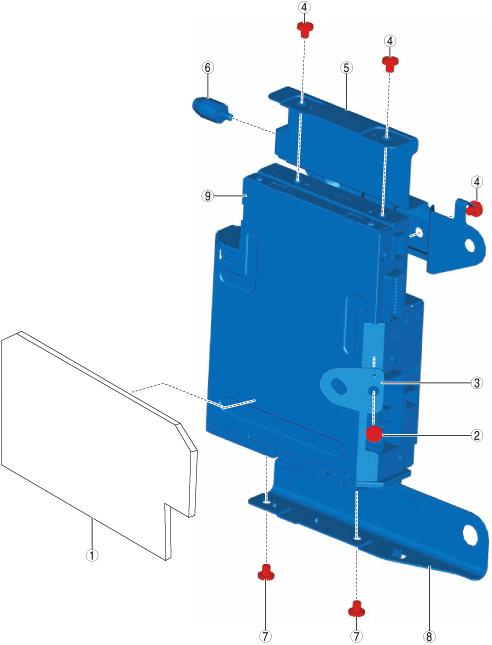

1.  Disassemble in the order indicated in the table.

amxzzw00004578

1
Cushion pad
(See Cushion Pad Installation Note.)
2
Screw A*1
3
Bracket A*1
4
Screw B
5
Bracket B
6
Positioning pin
7
Screw C
8
Bracket C
9
TAU

*1  :It is not necessary to assemble the bracket and screw for the L.H.D. vehicles because they are not used.

2.  Assemble in the reverse order of disassembly.


Cushion Pad Installation Note

1.  Align TAU lines A and B with cushion pad lines A and B and attach the cushion pad to the shaded area.

amxzzw00004579

2.  Bend the cushion pad around TAU line C and attach it to the shaded area.

amxzzw00004580

3.  Press down on the cushion pad to adhere it to the TAU.
