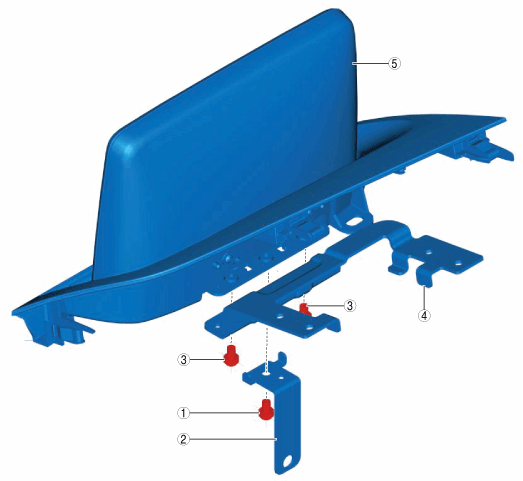

CENTER DISPLAY DISASSEMBLY/ASSEMBLY
id092000150500
1. Disassemble in the order indicated in the table.
amxzzw00004589
|
|
1
|
Screw A
|
|
2
|
Bracket A
|
|
3
|
Screw B
|
|
4
|
Bracket B
|
|
5
|
Center display
|
2. Assemble in the reverse order of disassembly.
