Bluetooth® UNIT [WITHOUT CENTER DISPLAY]

id0920z9013500


Purpose, Function

•  The Bluetooth® unit performs wireless transmission with a paired, Bluetooth® enabled mobile phone/portable audio device.

Specification

Item

Function
Profile
A2DP (Advanced audio distribution profile)
A2DP is a profile for transmitting high quality audio data by means of a Bluetooth® device and wireless transmission technology.
AVRCP 1.0/1.3/1.4 (Audio/video remote control profile)
AVRCP is a profile which provides a standard interface which controls television and audio devices. The function differs depending on the version.
HFP 1.5 (Hands-free profile)
HFP is a profile for making and receiving telephone calls by means of a Bluetooth® device and wireless transmission technology.
DUN 1.1 (Dial-up Networking Profile)
DUN is a profile for accessing a dial-up service such as the Internet or other service via a Bluetooth® radio wave connection.
PBAP 1.0 (Phone book access profile)
PBAP is a profile for transmitting telephone book data.
Maximum number of programmable devices
7
Number of programmed devices which can be used simultaneously
1


Construction

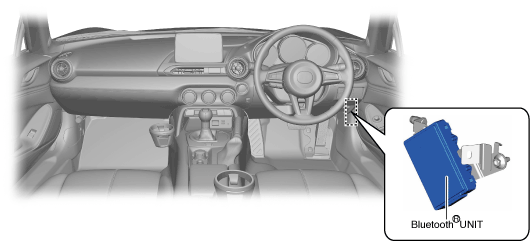

•  The Bluetooth® unit is located in the front side trim (RH).
amxzzn00000990

Terminal layout and signal

Terminal

Signal
A
Microphone signal input (+)
B
Microphone signal input (-)
C
Microphone power supply
D
Microphone signal shield ground
E
Microphone detection
F
Steering switch input
G
—
H
—
I
Differential audio output (+)
J
Differential audio output (-)
K
Audio ground
L
—
M
Single audio output LH
N
Single audio output RH
O
—
P
—
Q
—
R
—
S
—
T
—
U
—
V
—
W
—
X
Ground
Y
Local MS-CAN_H
Z
Local MS-CAN_L
AA
B+
AB
ACC


Operation

•  For the Bluetooth® unit operation, refer to [ENTERTAINMENT SYSTEM]. (See ENTERTAINMENT SYSTEM [WITHOUT CENTER DISPLAY].)

Fail-safe

•  Not applicable
