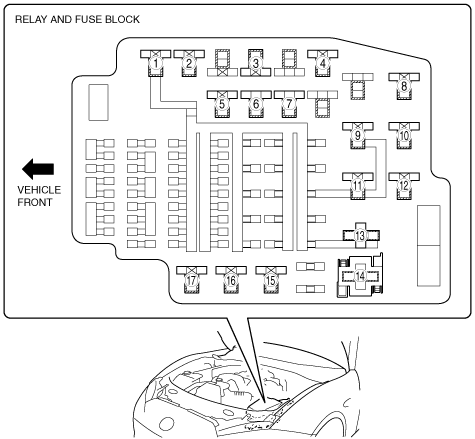

RELAY LOCATION
id092100800600
amxzzw00005549
|
|
1
|
IG1 relay
|
|
2
|
A/C relay
|
|
3
|
Headlight cleaner relay
|
|
4
|
Brake light relay
|
|
5
|
Electric AT oil pump relay
|
|
6
|
Wiper INT relay
|
|
7
|
Wiper HI relay
|
|
8
|
Horn relay
|
|
9
|
Starter relay
|
|
10
|
Electric variable valve timing relay
|
|
11
|
ACC relay
|
|
12
|
Rear window defogger relay
|
|
13
|
Blower relay
|
|
14
|
Cooling fan relay
|
|
15
|
Main relay
|
|
16
|
Sub relay
|
|
17
|
Fuel pump relay
|
