HORN REMOVAL/INSTALLATION

id092200012600

Horn LO

Caution

•   Remove the horn LO and the bracket as a single unit. Otherwise, the sound quality may change.

ardjjw00004097

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front under cover. (See FRONT UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the seal plate (RH). (See SEAL PLATE REMOVAL/INSTALLATION.)

4.  Disconnect the connectors.

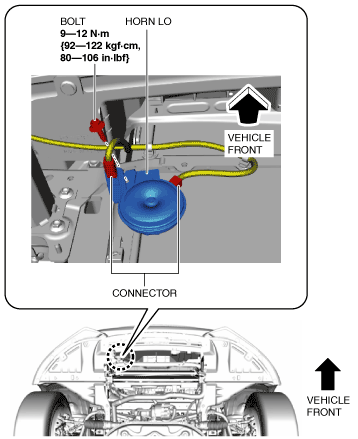

ardjjw00004096

5.  Remove the bolt.

6.  Remove the horn LO.

7.  Install in the reverse order of removal.

Horn HI

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Partially peel back the front mudguard No.1 (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

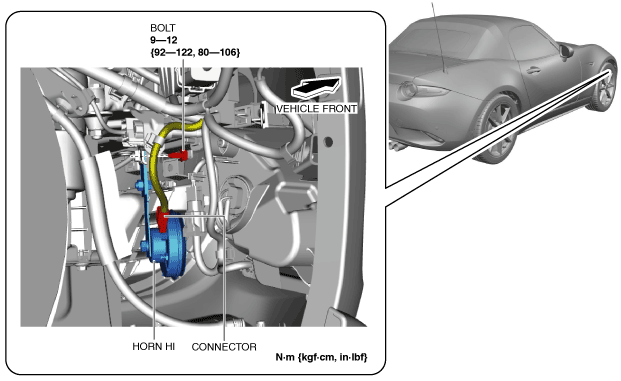

amxzzw00003279

4.  Remove the bolt.

5.  Remove the horn HI.

6.  Install in the reverse order of removal.
