HORN
id092200021700
Purpose, Function

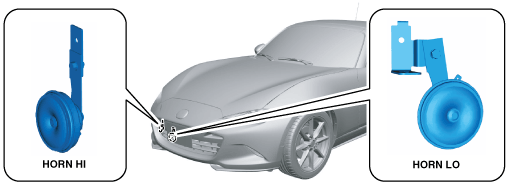

Construction
amxzzn00001337
|

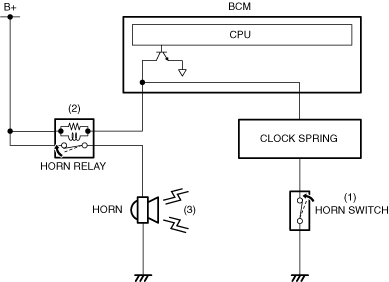

Operation
1. When the horn switch turns on (1), the horn relay turns on (2).
2. When the horn relay turns on, the horn LO and HI sound (3).
amxzzn00001338
|
Fail-safe
