SPEEDOMETER

id092200032500

Purpose

• The speedometer notifies the driver of the speed at which the vehicle is traveling.

Functions

• The instrument cluster displays the current vehicle speed based on the vehicle speed signal from the PCM.

Construction

• An analog needle display speedometer with a stepping motor mechanism has been adopted.

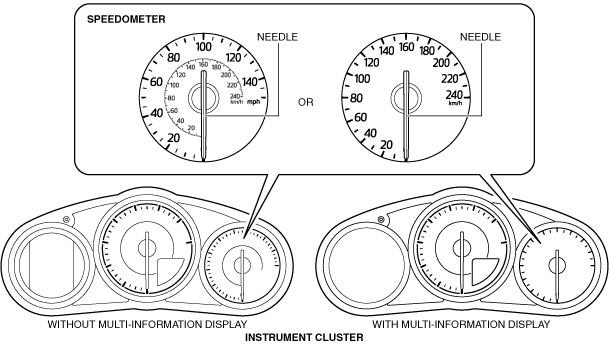

amxzzn00001357

Operation

1. The instrument cluster displays (2) the current vehicle speed when it receives (1) a vehicle speed signal via CAN communication from the PCM with the ignition is switched ON (engine on).

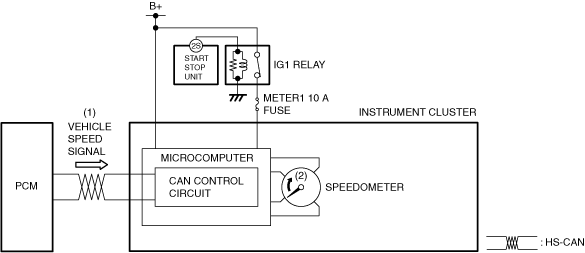

amxzzn00001358

Fail-safe

• Not applicable
