FUEL GAUGE
id092200032700
Purpose
• The fuel gauge notifies the driver of the fuel tank level.
Functions
• The instrument cluster calculates the amount of fuel in the fuel tank based on the following signals and displays the fuel gauge digital needle.
|
Signal name
|
Sending module/part name
|
Communication method
|
|
Fuel gauge sender unit voltage signal
|
BCM
|
HS-CAN
|
|
Fuel injection amount signal
|
PCM
|
|
Vehicle speed signal
|
Fuel gauge flicker prevention function
-
• When the instrument cluster determines that the vehicle is being driven, it retards the response with which the calculated fuel tank level is reflected to the fuel gauge. As a result, fuel gauge flicker caused by the variation of fuel surface during driving is prevented.
Refuel determination function
-
• If the fuel tank level changes by 5 L {1 US gal, 1 Imp gal} or 2 L {0.5 US gal, 0.4 Imp gal}*1or more while the vehicle is stopped, the instrument cluster determines that the vehicle is refueled and displays the fuel gauge digital needle based on the fuel gauge sender unit voltage signal from the BCM.

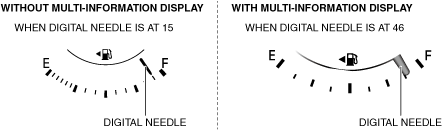

*1 :5 L {1 US gal, 1 Imp gal} when the digital needle is at the 15 or less (without multi-information display)/46 or less (with multi-information display) mark on the scale, 2 L {0.5 US gal, 0.4 Imp gal} when it is at the 16 or more (without multi-information display)/47 or more (with multi-information display) mark on the scale.

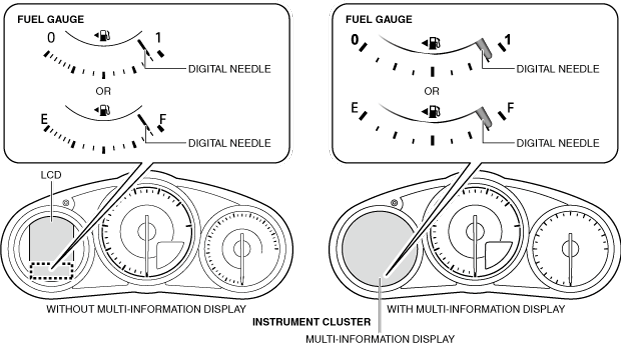

Construction
• The fuel gauge is displayed in the LCD (without multi-information display)/multi-information display (with multi-information display) of the instrument cluster.
• The fuel gauge consists of 16 (without multi-information display)/53 (with multi-information display) digital needles.

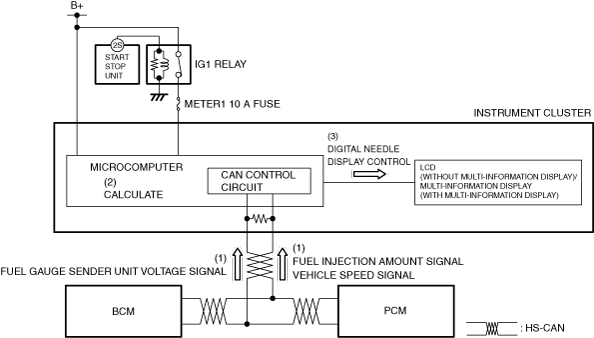

Operation
1. When the instrument cluster receives (1) a fuel gauge sender unit voltage signal from the BCM and a fuel injection amount signal and vehicle speed signal from the PCM via CAN communication while the engine is switched ON (engine off or on), it calculates (2) the remaining fuel amount based on each signal.
2. Display/non-display (3) of the fuel gauge digital needle in the LCD (without multi-information display)/multi-information display (with multi-information display) by the instrument cluster is based on the calculated result.
Fail-safe
• Not applicable
